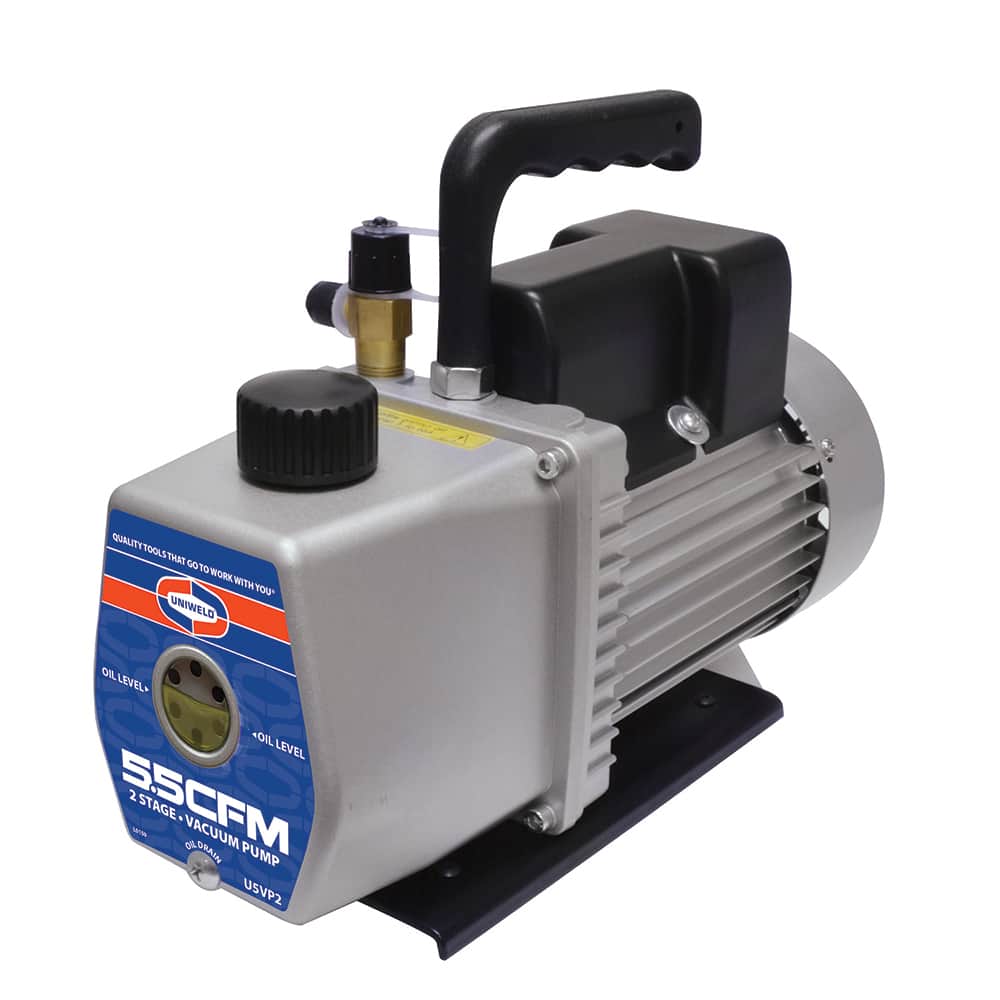

Value Collection - Rotary Vane-Type Vacuum Pumps; Horsepower: 1/2 ; Voltage: 100-110/200-240; 100-115/208-230 ; Cubic Feet per Minute: 5.50 ; Length (Decimal Inch): 12.5000 ; Width (Decimal Inch): 4.0000 ; Height (Inch): 9.5
Item #: 20146296
Brand: Value Collection
Model #: U5VP2
Product Specifications
Rotary Vane-Type Vacuum Pumps; Horsepower: 1/2 ; Voltage: 100-110/200-240; 100-115/208-230 ; Cubic Feet per Minute: 5.50 ; Length (Decimal Inch): 12.5000 ; Width (Decimal Inch): 4.0000 ; Height (Inch): 9.5
| Horsepower | 1/2 |
| Voltage | 100-110/200-240; 100-115/208-230 |
| Cubic Feet per Minute | 5.50 |
| Length (Decimal Inch) | 12.5000 |
| Width (Decimal Inch) | 4.0000 |
| Height (Inch) | 9.5 |
| Special Item Information | 5.5 CFM; oil capacity of 11.1 ounces (350mL); factory micron rating of 15 microns; low profile on/off rocker switch; 110V/220V power selector switch; center mounted handle for balance; dual intake fittings (1/4? and 3/8" male flare) with tethered caps; po |
| PSC Code | 4310 |
| Phase | Single Phase |
| Vacuum Rating | 15 |
