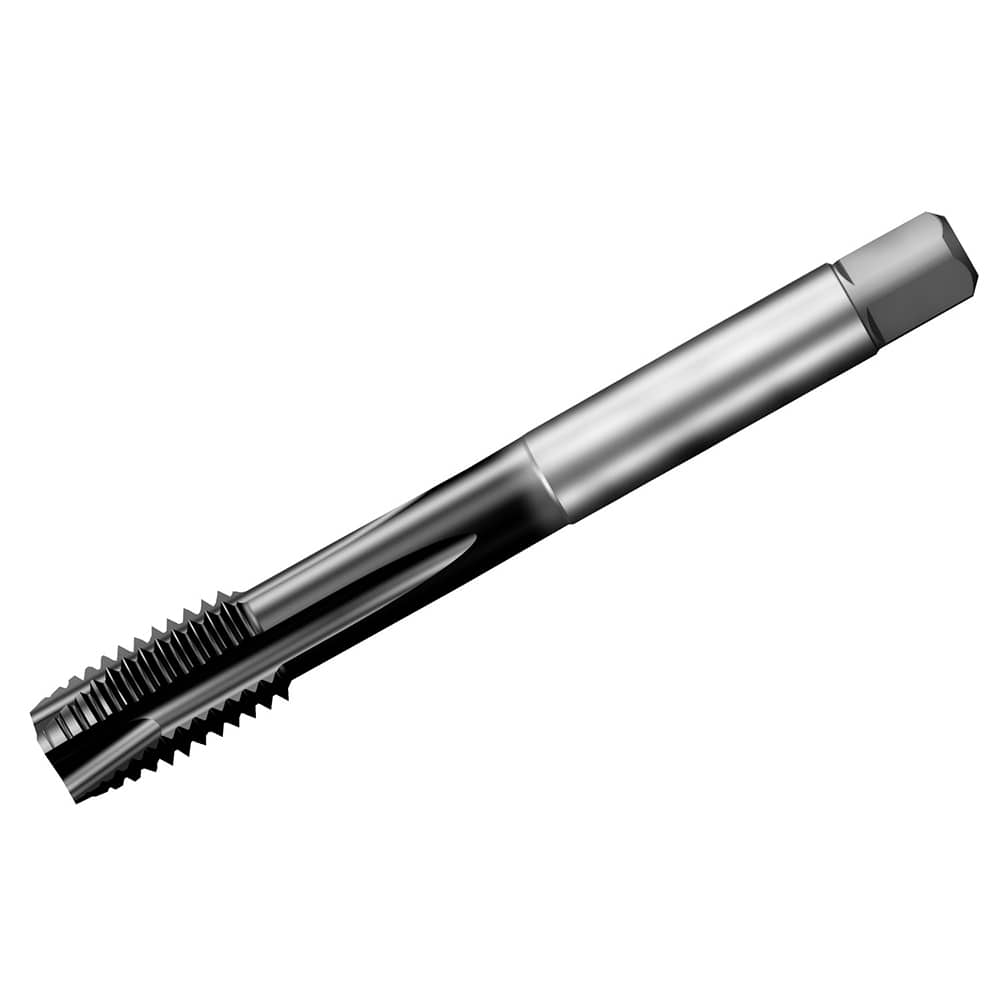

Spiral Point Tap: M16 x 1.5, DIN/ANSI, 4 Flutes, Plug, 6HX, HSS-E-PM, TiAlN Finish 23 mm Thread Length, 110 mm OAL, Right Hand, Series T200
Item #: 20151155
Brand: Sandvik Coromant
Model #: 8057097
Product Specifications
| Material | HSS-E-PM |
| Coating/Finish | TiAlN |
| Thread Size (mm) | M16 x 1.50 |
| Thread Standard | DIN/ANSI |
| Thread Direction | Right Hand |
| Thread Length (Mm) ( - 3 Decimals) | 23.00 |
| Overall Length (mm) | 110.00 |
| Chamfer | Plug |
| Material Grade | P1PM |
| Shank Diameter (mm) | 12.00 |
| Tapping Depth (mm) | 55.00 |
| Series | T200 |
| Coolant Through | No |
| Class Of Fit | 6HX |
| Number Of Flutes | 4 |
