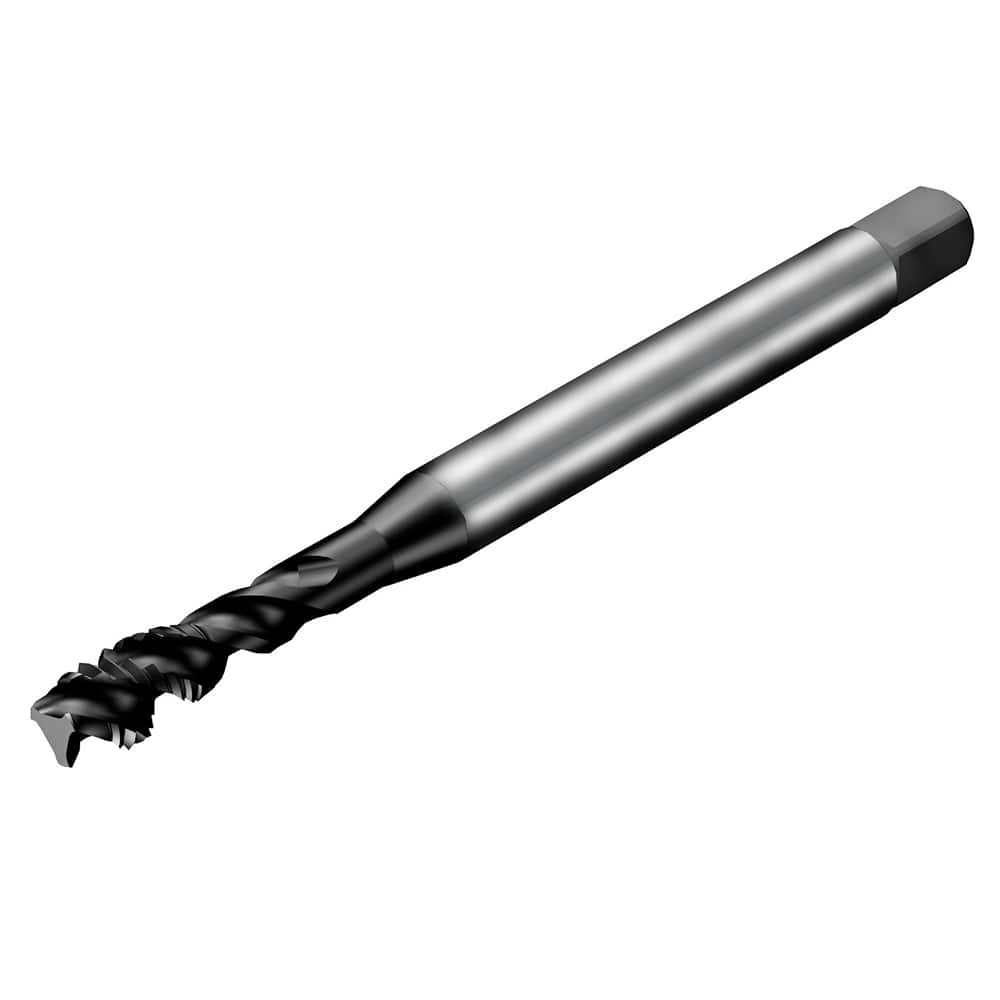

Sandvik Coromant - Spiral Flute Taps; Thread Size (mm): M8x1.25 ; Chamfer: Semi-Bottoming ; Class of Fit: 6HX ; Number of Flutes: 3 ; Material: HSS-E-PM ; Finish/Coating: TiAlN
Item #: 20152906
Brand: Sandvik Coromant
Model #: 8055803
Product Specifications
Spiral Flute Taps; Thread Size (mm): M8x1.25 ; Chamfer: Semi-Bottoming ; Class of Fit: 6HX ; Number of Flutes: 3 ; Material: HSS-E-PM ; Finish/Coating: TiAlN
| Thread Size (mm) | M8x1.25 |
| Chamfer | Semi-Bottoming |
| Class of Fit | 6HX |
| Number of Flutes | 3 |
| Material | HSS-E-PM |
| Finish/Coating | TiAlN |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Overall Length (mm) | 90.0000 |
| Helix Angle | 48.00 |
| Helix Angle Range | 15 to 50 |
| Thread Standard | DIN/ANSI |
| Material Grade | P1PM |
| Thread Length (mm) | 12.000 |
| Flute Type | Spiral |
| Series/List | T300 |
| Tapping Depth (mm) | 33.50 |
| Shank Diameter (mm) | 8.0000 |
| Material Application | P |
