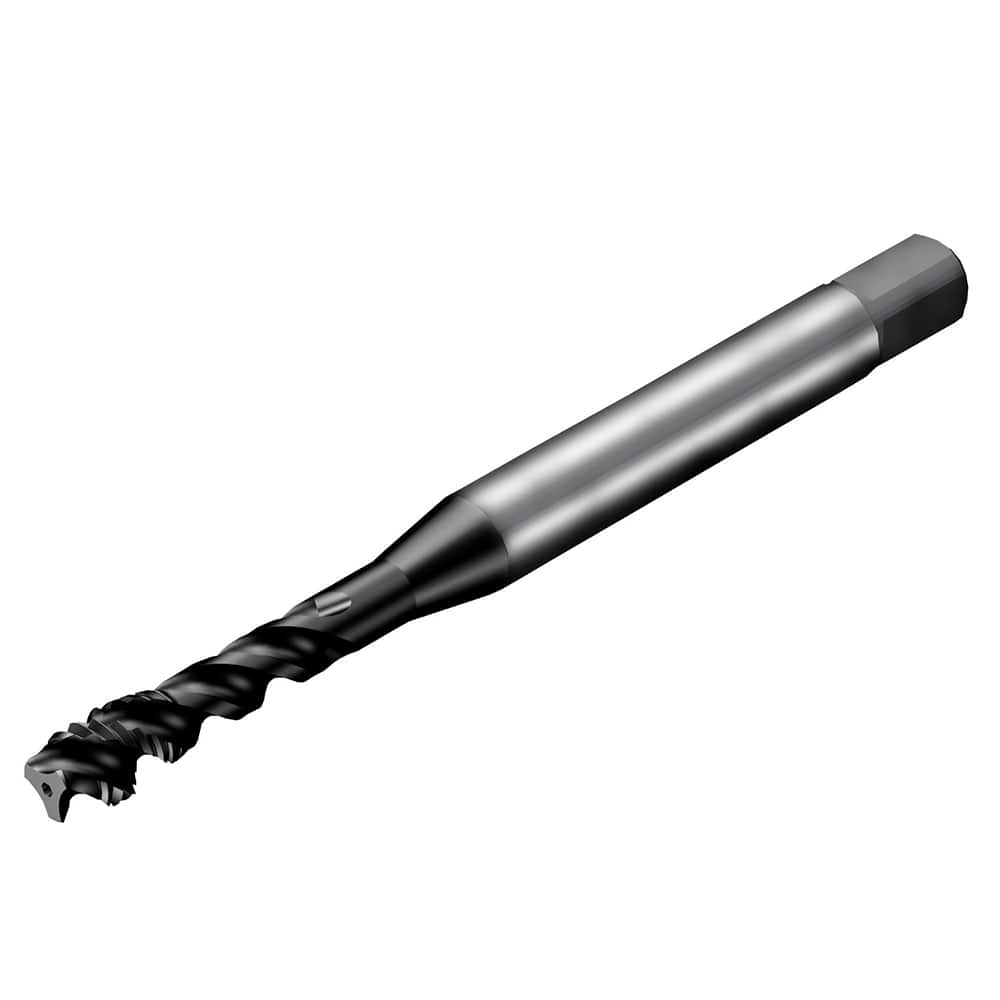

Spiral Flute Tap: M10 x 1.50, DIN 371, 3 Flute, Semi-Bottoming, 6HX Class of Fit, High Speed Steel-E-PM, TiAlN Finish Right Hand Flute, Right Hand Thread, Series T300
Item #: 20153094
Brand: Sandvik Coromant
Model #: 8055827
Product Specifications
| Material | High Speed Steel-E-PM |
| Coating/Finish | TiAlN |
| Thread Size (mm) | M10 x 1.50 |
| Thread Standard | DIN 371 |
| Thread Direction | Right Hand |
| Thread Length (Mm) ( - 3 Decimals) | 15.00 |
| Overall Length (mm) | 100.00 |
| Chamfer | Semi-Bottoming |
| Flute Direction | Right Hand |
| Material Grade | P1PM |
| Helix Angle | 48 |
| Shank Diameter (mm) | 10.00 |
| Tapping Depth (mm) | 39.00 |
| Material Application | P |
| Series | T300 |
| Helix Angle Range | 15 to 50 |
| Coolant Through | Yes |
| Number Of Flutes | 3 |
| Class Of Fit | 6HX |
