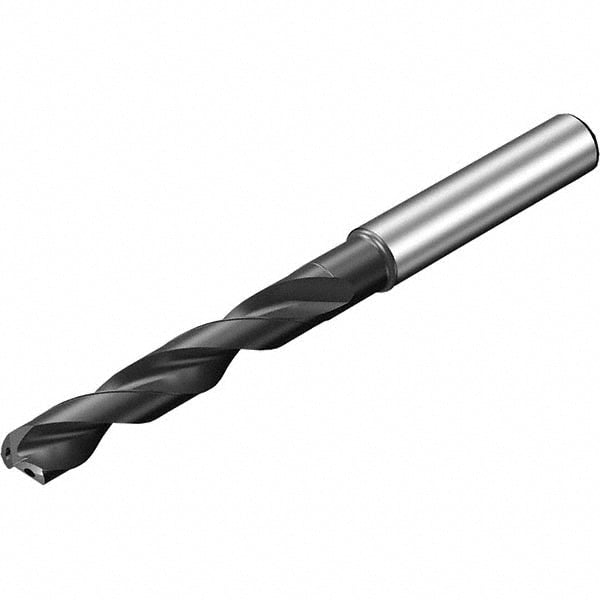

Brand: Sandvik Coromant / Part #: 7574767
Item #: 17402728
Brand: Sandvik Coromant
Model #: 7574767
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.1890 |
| Drill Bit Size (mm) | 4.80 |
| Drill Bit Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | AlTiN |
| Drill Point Angle (Degrees) | 140 |
| Flute Type | Spiral |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number of Flutes | 2 |
| Overall Length (mm) | 82.00 |
| Flute Length (mm) | 36.00 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 6.00 |
| Maximum Drilling Depth (mm) | 24.90 |
| Drill Point Length (mm) | 0.87 |
| Specification Number | DIN 6535L |
| Drill Bit Size Range (Decimal Inch) | 0.1500 - 0.2000 |
| Drill Bit Size Range (mm) | 4.00 - 5.00 |
| Material Grade | 1210 |
| Specification Designation | DIN |
