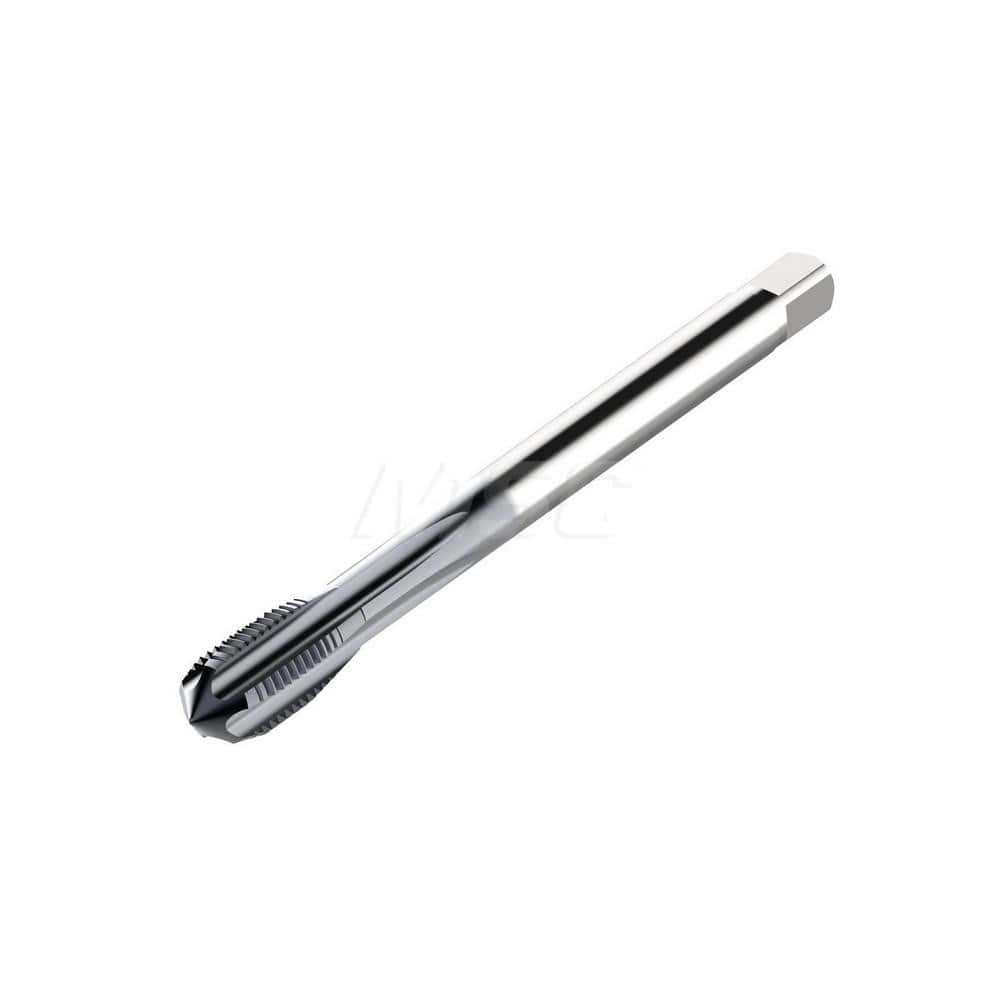

Straight Flutes Tap: Metric Fine, 5 Flutes, Modified Bottoming, 6HX, Powdered Metal High Speed Steel, TiAlN Finish Right Hand, Series MTS
Item #: 20522033
Brand: Seco
Model #: 03305471
Product Specifications
| Tap Type | Straight Flute |
| Material | Powdered Metal High Speed Steel |
| Coating/Finish | TiAlN |
| Thread Size (mm) | M16 x 1.50 |
| Overall Length (mm) | 100.00 |
| Chamfer | Modified Bottoming |
| Thread Standard | Metric Fine |
| Thread Direction | Right Hand |
| Thread Length (Mm) ( - 3 Decimals) | 21.00 |
| Shank Diameter (mm) | 12.00 |
| Tapping Depth (mm) | 58.00 |
| Material Application | Cast Iron |
| Series | MTS |
| Neck Length | 37.00 |
| Class Of Fit | 6HX |
| Number Of Flutes | 5 |
| Coolant Through | No |
