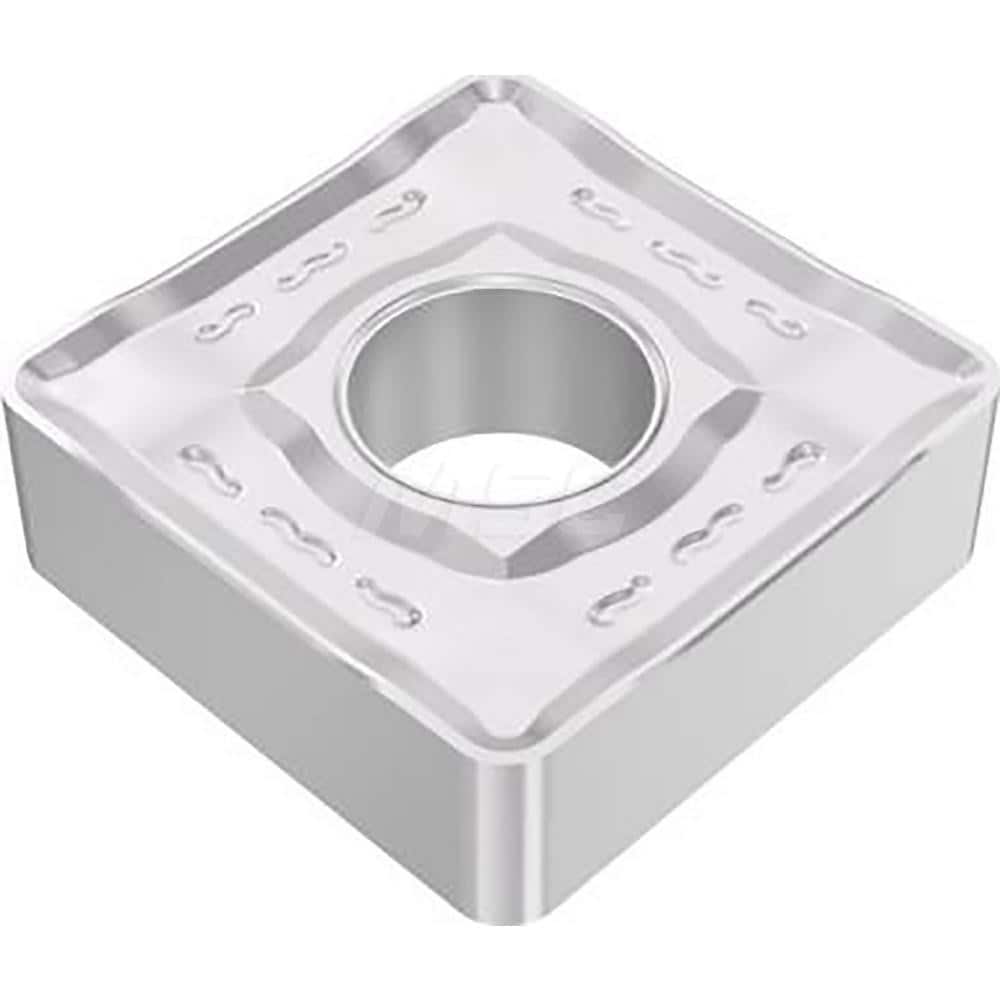

Turning Insert: SNMM856-RR6 TP25, Solid Carbide Neutral, 1.0000″ Long, 1″ Inscribed Circle, 0.0940″ Corner Radius, 90.0 ° N/A
Item #: 20522918
Brand: Seco
Model #: 10063841
Product Specifications
| Insert Style | SNMM |
| Insert Shape Code | S |
| Insert Size Code | 856 |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | TP25 |
| Hole Diameter (Decimal Inch) | 0.3590 |
| Inscribed Circle (Inch) | 1 |
| Inscribed Circle (Decimal Inch) | 1.0000 |
| Insert Hand | Neutral |
| Corner Radius (Decimal Inch) | 0.0940 |
| Included Angle | 90.0 |
| Relief Angle | 0 |
| Coating Process | CVD |
| Rake | Negative |
| Insert Length (Inch) | 1 |
| Insert Length (Decimal Inch) | 1.0000 |
| Primary Workpiece Material | Steel |
| Secondary Workpiece Material | Stainless Steel |
| Iso Code | SNMM250724-RR6 |
| Manufacturers Catalog Number | 10063841 |
| Cutting Direction | Neutral |
| Lead Angle | 90 |
| Chip Breaker | RR6 |
| Rake Angle | 0 |
| Multi-Use Application | Facing; Turning |
