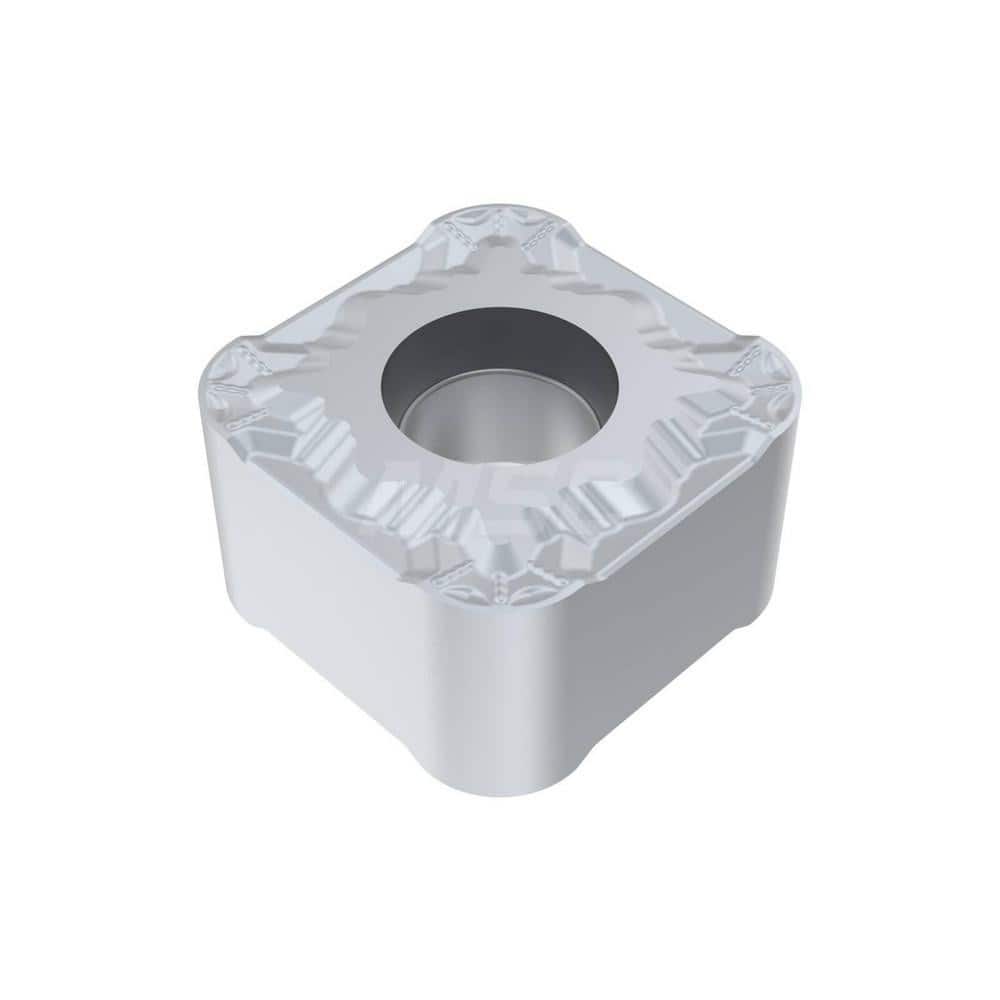

Turning Insert: SNMX6710-R2 TP25, Solid Carbide Neutral, 3/4″ Inscribed Circle, 0.1570″ Corner Radius, 90.0 ° N/A
Item #: 20522959
Brand: Seco
Model #: 10071303
Product Specifications
| Insert Style | SNMX |
| Insert Shape Code | S |
| Insert Size Code | 6710 |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | TP25 |
| Hole Diameter (Decimal Inch) | 0.3050 |
| Inscribed Circle (Inch) | 3/4 |
| Insert Hand | Neutral |
| Corner Radius (Decimal Inch) | 0.1570 |
| Included Angle | 90.0 |
| Relief Angle | 0 |
| Coating Process | CVD |
| Rake | Negative |
| Insert Length (Inch) | 3/4 |
| Primary Workpiece Material | Steel |
| Secondary Workpiece Material | Stainless Steel |
| Iso Code | SNMX191140-R2 |
| Manufacturers Catalog Number | 10071303 |
| Cutting Direction | Neutral |
| Lead Angle | 90 |
| Chip Breaker | R2 |
| Rake Angle | 0 |
| Multi-Use Application | Facing; Turning |
