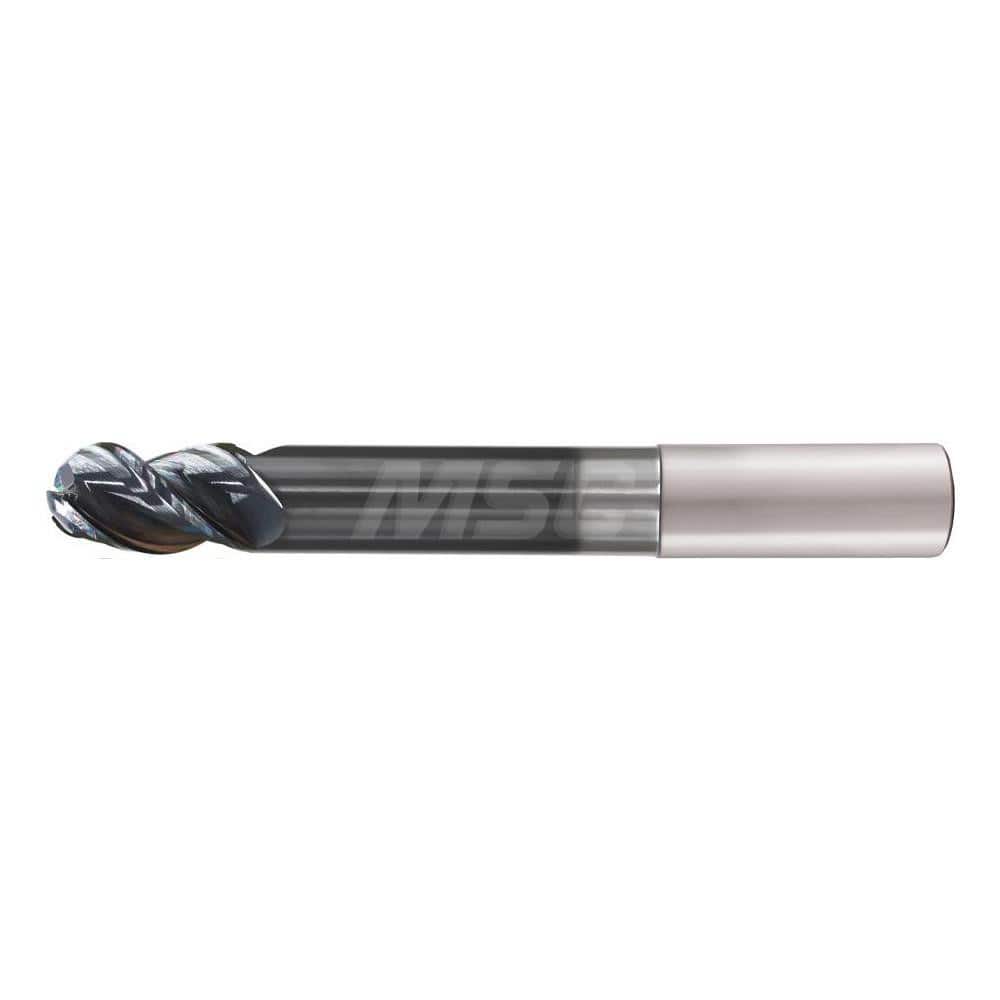

Ball End Mill: 0.5″ Dia, 5 Flute, Solid Carbide 6″ OAL, 1/2″ Shank Dia, 38 ° Helix, TiAlCN Coated, Single End, Series Flash Solid
Item #: 20555652
Brand: Iscar
Model #: 3398633
Product Specifications
| Mill Diameter (Inch) | 1/2 |
| Mill Diameter (Decimal Inch) | 0.5000 |
| Length of Cut (Inch) | 7/8 |
| End Mill Material | Solid Carbide |
| Extended Reach | Yes |
| Helix Angle | 38 |
| Variable Index | Yes |
| Variable Helix | No |
| Shank Diameter (Inch) | 1/2 |
| Reach Length (Inch) | 4-1/8 |
| Overall Length (Inch) | 6 |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | Flash Solid |
| Flute Type | Spiral |
| Centercutting | Yes |
| Corner Radius (Decimal Inch) | 1/4 |
| Single Or Double End | Single |
| Number Of Flutes | 5 |
| Coating/Finish | TiAlCN |
| Manufacturers Catalog Number | EBI-5 .5-.88/4.13CVF6. |
