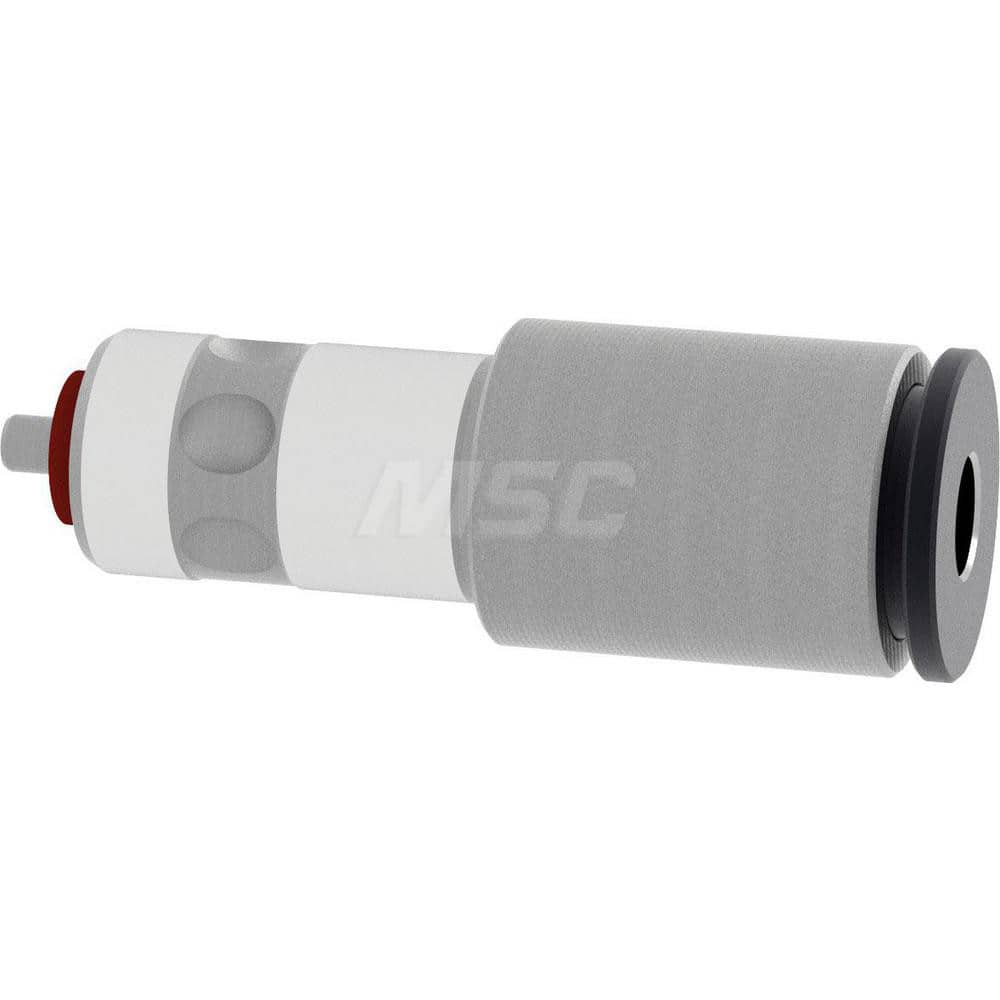

Tapping Adapter: M6 & M8 Tap, #4 Adapter 6 mm Tap Shank Dia, 4.9 mm Tap Square Size, Through Coolant, Series STH4
Item #: 20578597
Brand: Bilz
Model #: 5139738
Product Specifications
| Tap Size | M6; M8 |
| Tap Adapter Size | #4 |
| Tap Shank Diameter (Decimal Inch) | 0.2362 |
| Tap Shank Diameter (mm) | 6.00 |
| Tap Square Size (mm) | 4.90 |
| Quick-change | Yes |
| Projection (mm) | 27.00 |
| Tap Depth (mm) | 23.00 |
| Material | Hardened Tool Steel |
| Series | STH4 |
| Additional Information | Works in Base Tap Collet STL4/ER25 to form STA System (order separately) |
| DIN Standard | DIN 371; DIN 376 |
| Coolant Through | Yes |
| Nose Diameter (Decimal Inch - 4 Decimals) | 0.7500 |
| Tapping Style | Synchro |
