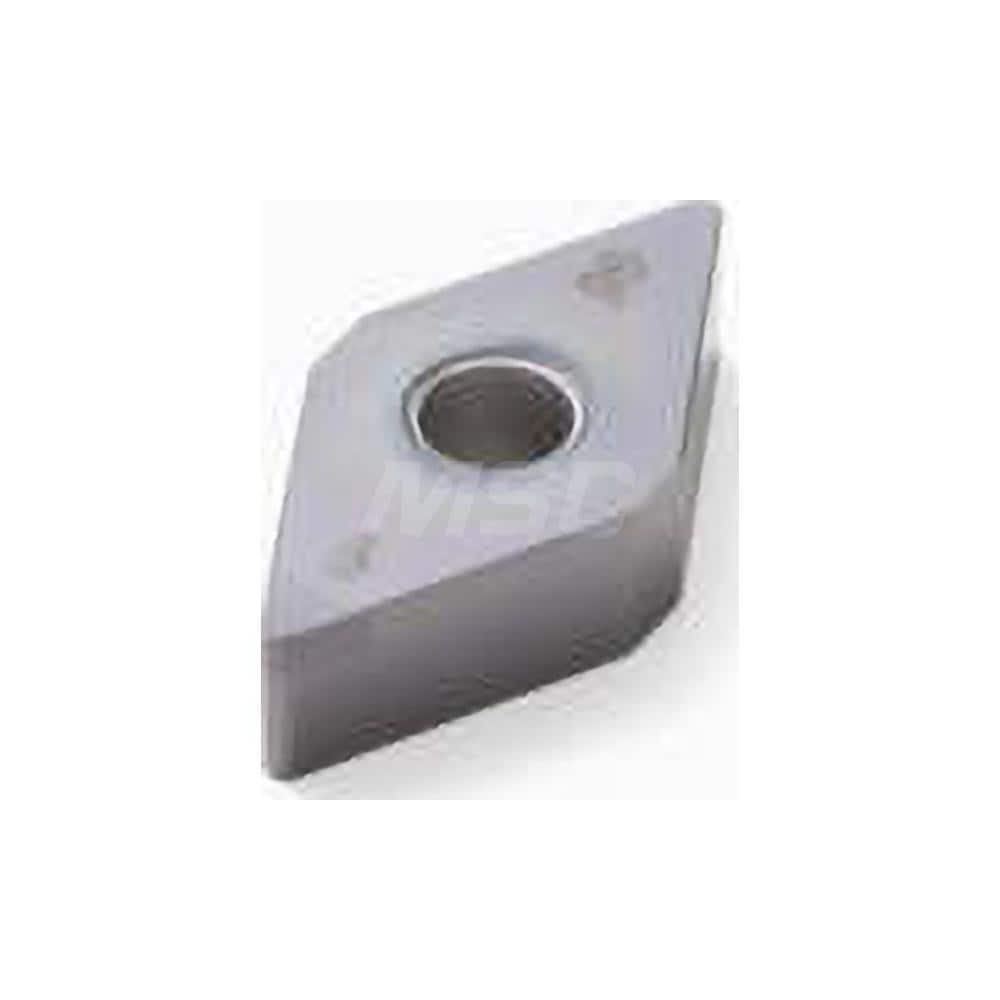

Turning Insert: DNGA432S30-00835-L1-B, Cubic Boron Nitride TiAlSiN Finish, Neutral, 1/2″ Inscribed Circle, 0.0315″ Corner Radius, 55.0 ° N/A Diamond, Series DNGA
Item #: 20628483
Brand: Seco
Model #: 10102701
Product Specifications
| Insert Style | DNGA |
| Insert Size Code | 432 |
| Insert Shape | Diamond |
| Insert Material | Cubic Boron Nitride |
| Manufacturer Grade | CBN060K |
| Hole Diameter (Decimal Inch) | 0.2030 |
| Maximum Depth of Cut (Decimal Inch) | 0.1340 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Holding Method | Pin; Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1870 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 55.0 |
| Relief Angle | 0 |
| Series | DNGA |
| Coating Process | PVD |
| Rake | Negative |
| Wiper Edge | No |
| Number Of Cutting Edges | 4 |
| Primary Workpiece Material | Hardened Steel |
| Primary Workpiece Material Code | H |
| Ansi Code | DNGA432S3000835L1B |
| Iso Code | DNGA150408S30-02035L1B |
| Coating/Finish | TiAlSiN |
