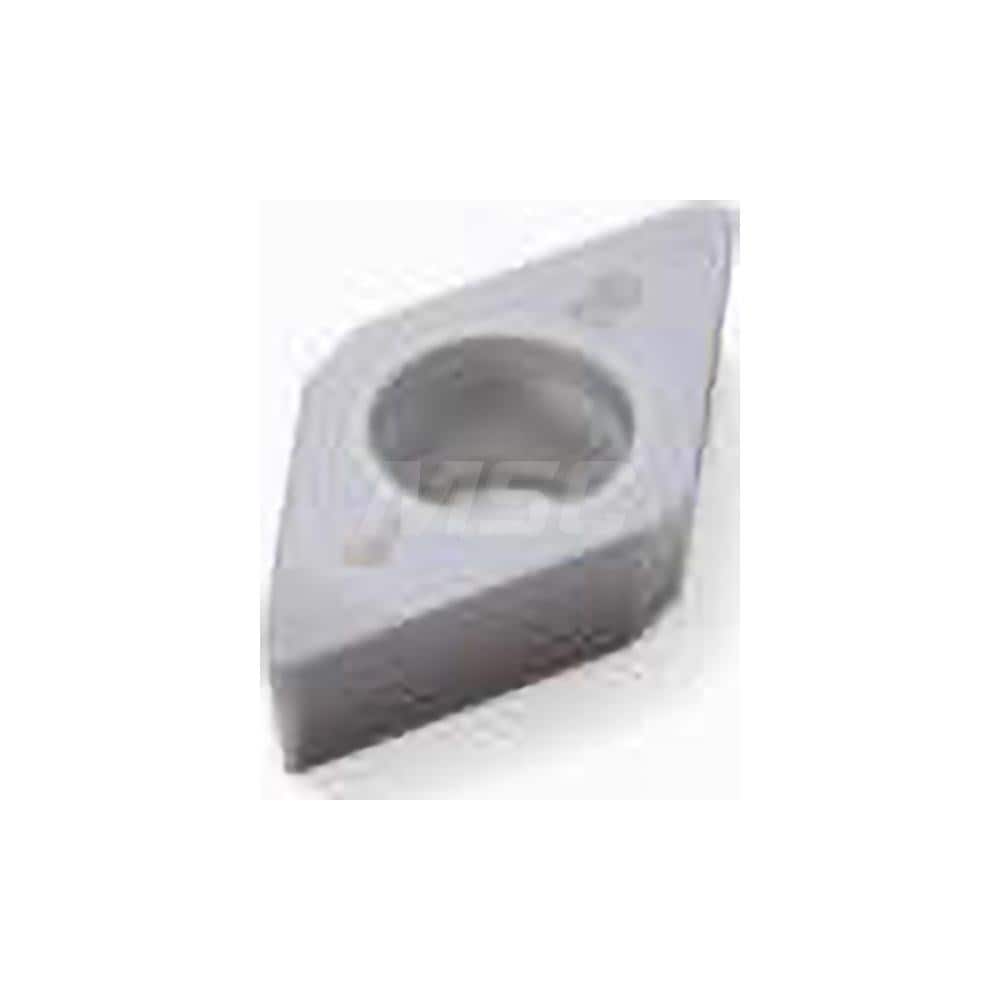

Turning Insert: DCGW11T308S-L1-WZP-B, Cubic Boron Nitride TiAlSiN Finish, Neutral, 3/8″ Inscribed Circle, 0.0315″ Corner Radius, 55.0 ° N/A Diamond, Series DCGW
Item #: 20628632
Brand: Seco
Model #: 03261552
Product Specifications
| Insert Style | DCGW |
| Insert Size Code | 32.52 |
| Insert Shape | Diamond |
| Insert Material | Cubic Boron Nitride |
| Manufacturer Grade | CBN060K |
| Hole Diameter (Decimal Inch) | 0.1770 |
| Maximum Depth of Cut (Decimal Inch) | 0.1220 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1560 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 55.0 |
| Relief Angle | 7 |
| Series | DCGW |
| Coating Process | PVD |
| Rake | Positive |
| Wiper Edge | No |
| Number Of Cutting Edges | 2 |
| Primary Workpiece Material | Hardened Steel |
| Primary Workpiece Material Code | H |
| Ansi Code | DCGW32.52SL1WZPB |
| Iso Code | DCGW11T308S-L1-WZP-B |
| Coating/Finish | TiAlSiN |
