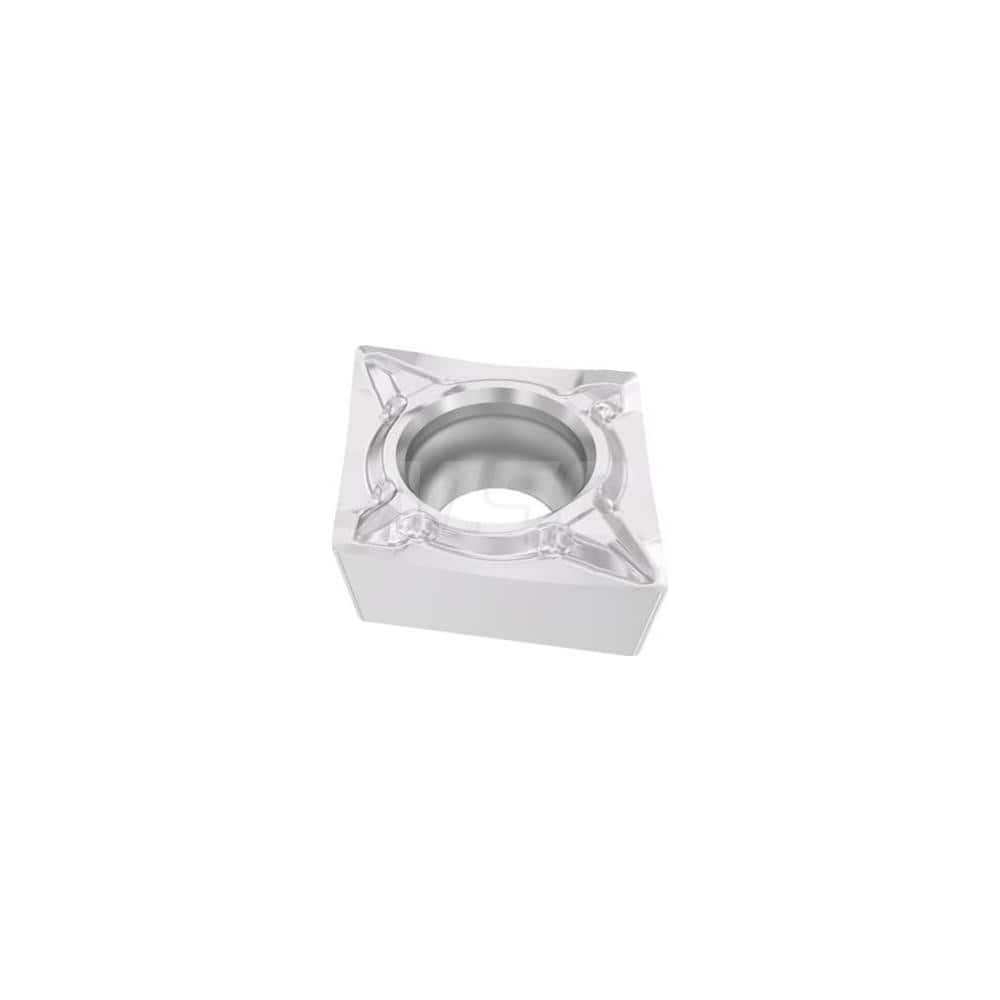

Turning Insert: CCMT21.51-F1 TH1501, Solid Carbide TiCN & Al2O3 Finish, Neutral, 1/4″ Inscribed Circle, 0.0157″ Corner Radius, 80.0 ° N/A Diamond, Series CCMT
Item #: 20629549
Brand: Seco
Model #: 10070627
Product Specifications
| Insert Style | CCMT |
| Insert Size Code | 21.51 |
| Insert Shape | Diamond |
| Insert Material | Solid Carbide |
| Manufacturer Grade | TH1501 |
| Hole Diameter (Decimal Inch) | 0.1140 |
| Maximum Depth of Cut (Decimal Inch) | 0.2360 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.0940 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 80.0 |
| Relief Angle | 7 |
| Series | CCMT |
| Coating Process | Duratomic |
| Rake | Positive |
| Wiper Edge | No |
| Number Of Cutting Edges | 2 |
| Primary Workpiece Material | Hard Material; Steel |
| Primary Workpiece Material Code | P; H |
| Secondary Workpiece Material | Cast Iron |
| Secondary Workpiece Material Code | K |
| Ansi Code | CCMT21.51F1 |
| Iso Code | CCMT060204-F1 |
| Chip Breaker | F1 |
| Coating/Finish | TiCN; Al2O3 |
