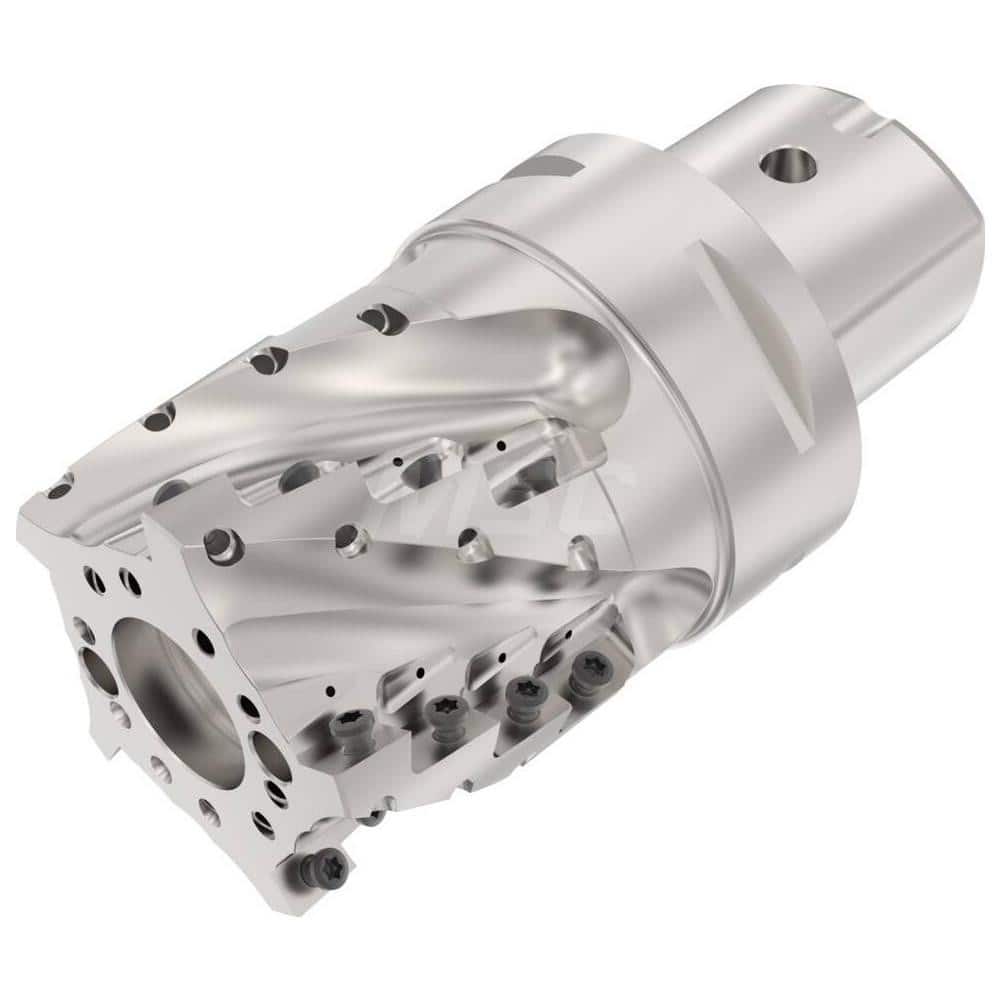

Indexable Square-Shoulder End Mill: C8R217.6908006218.5BAN, 80.0000'' Shank Dia, C8 Modular Connection, Modular Shank Uses 20, Normal Pressure, 110.20 mm OAL
Item #: 20629655
Brand: Seco
Model #: 02829946
Product Specifications
| Minimum Cutting Diameter (mm) | 80.00 |
| Maximum Cutting Diameter (mm) | 80.00 |
| Maximum Depth of Cut (mm) | 62.00 |
| Cutter Style | Helical |
| Shank Type | Modular |
| Shank Diameter (Decimal Inch) | 80.0000 |
| Shank Diameter (Inch) | 80 |
| Maximum Ramping Angle | 0 |
| Insert Holding Method | Screw |
| Shank Taper Size | C8 |
| Overall Length (mm) | 110.20 |
| Tool Material | Steel |
| Series | R217.69 |
| Flute Type | Helical |
| Lead Angle | 90 |
| Modular Connection Size | C8 |
| Maximum RPM | 7000 |
| Tool Application | Shouldering |
| Tool Performance | High-Performance |
| Usable Length (mm) | 110.200 |
| Number Of Flutes | 5 |
| Number Of Cutter Inserts | 20 |
| Coolant Through | Normal Pressure |
