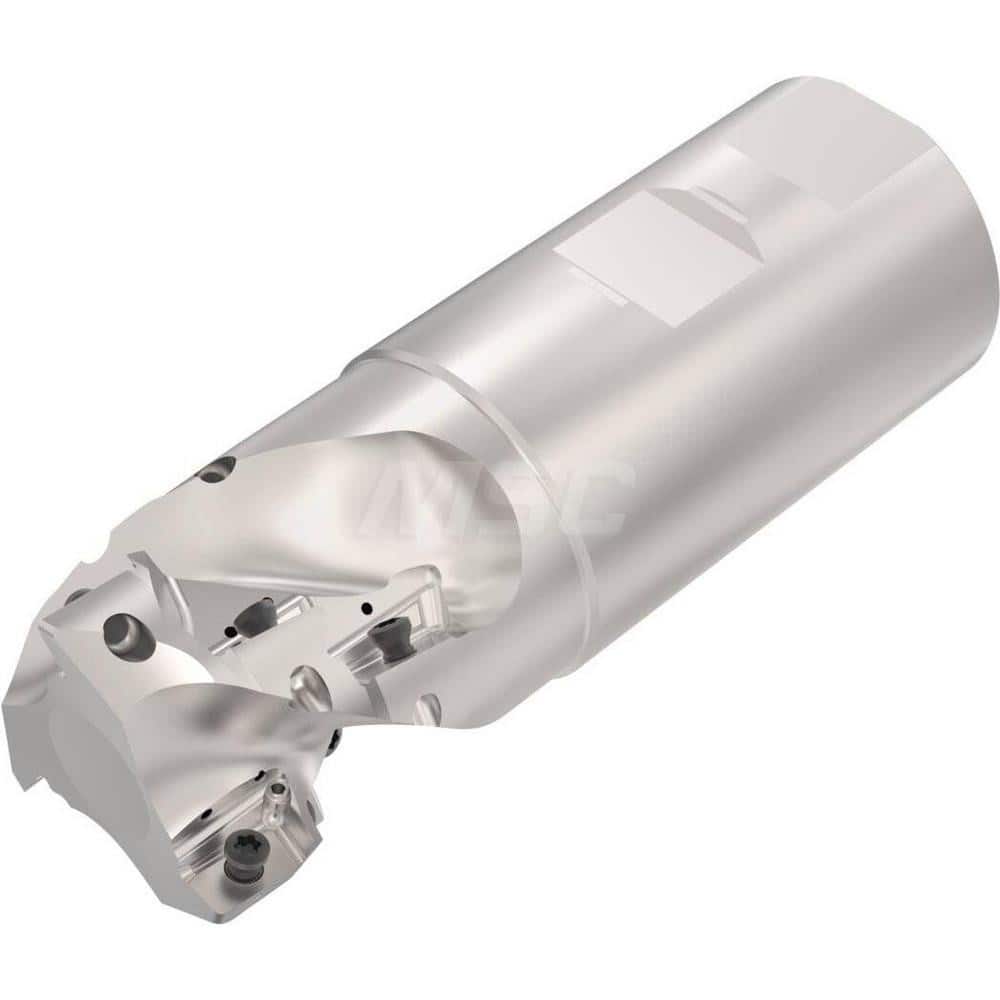

Indexable Square-Shoulder End Mill: R2176902003169XO163A, 2.0000'' Cut Dia, 1.6930'' Max Depth of Cut, 2.0000'' Shank Dia, Weldon Flat Shank Uses 9, High Pressure,
Item #: 20646915
Brand: Seco
Model #: 10067016
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 2.0000 |
| Minimum Cutting Diameter (Inch) | 2 |
| Maximum Cutting Diameter (Decimal Inch) | 2.0000 |
| Maximum Cutting Diameter (Inch) | 2 |
| Maximum Depth of Cut (Decimal Inch) | 1.6930 |
| Cutter Style | R217.69 |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 2.0000 |
| Shank Diameter (Inch) | 2 |
| Maximum Ramping Angle | 1.8 |
| Insert Holding Method | Screw |
| Overall Length (Decimal Inch) | 5.8200 |
| Tool Material | Steel |
| Series | Turbo 16 Helical |
| Flute Type | Helical |
| Lead Angle | 90 |
| Shank Length (Decimal Inch) | 3.2870 |
| Maximum RPM | 13200 |
| Tool Application | Pocketing; Slotting; Shouldering; Ramping |
| Tool Performance | High-Performance |
| Number Of Flutes | 3 |
| Usable Length (Decimal Inch) | 2.5120 |
| Number Of Cutter Inserts | 9 |
| Coolant Through | High Pressure |
