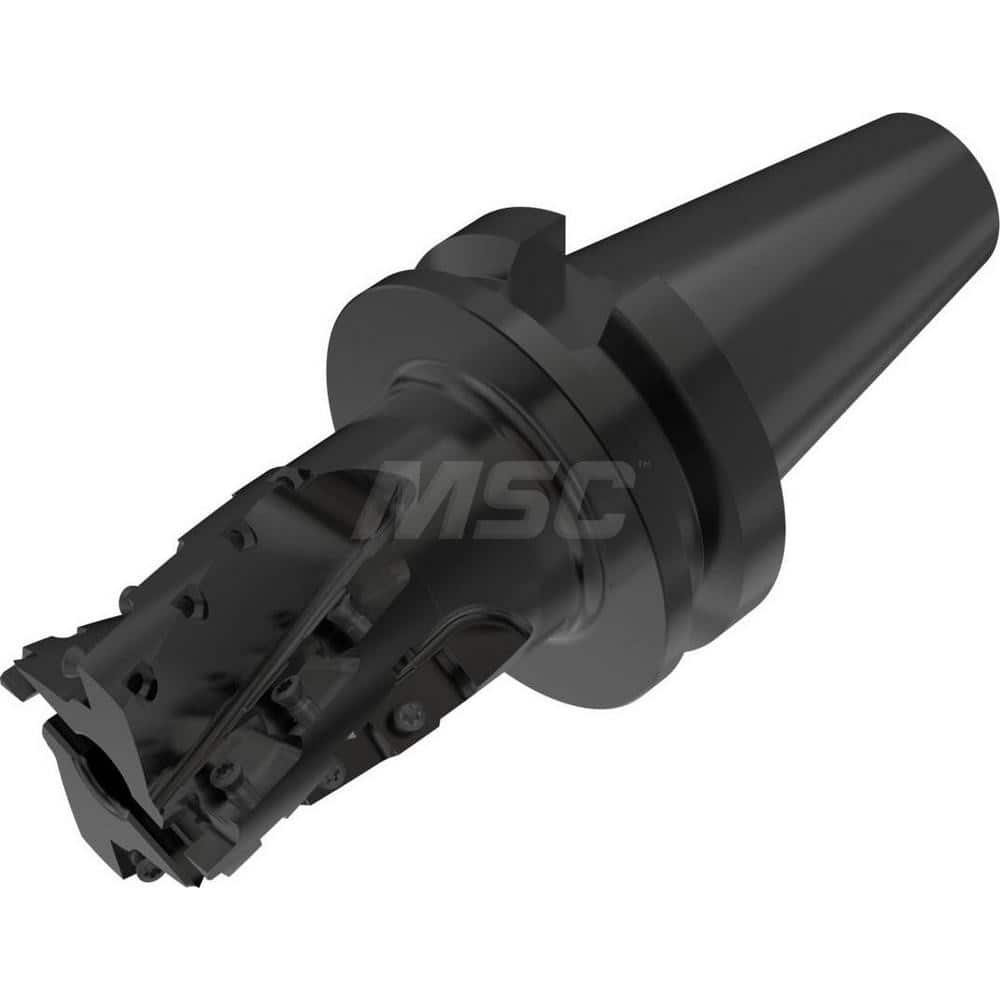

Indexable Square-Shoulder End Mill: R215.59BT50063062124B, 69.8500'' Shank Dia, Taper Shank Uses 14, Normal Pressure, 240.20 mm OAL
Item #: 20655114
Brand: Seco
Model #: 75036507
Product Specifications
| Minimum Cutting Diameter (mm) | 63.00 |
| Maximum Cutting Diameter (mm) | 63.00 |
| Maximum Depth of Cut (mm) | 62.00 |
| Cutter Style | Helical |
| Shank Type | Taper |
| Shank Diameter (Decimal Inch) | 69.8500 |
| Maximum Ramping Angle | 0 |
| Insert Holding Method | Screw |
| Shank Taper Size | BT50 |
| Overall Length (mm) | 240.20 |
| Tool Material | Steel |
| Series | R215.59 |
| Flute Type | Helical |
| Lead Angle | 90 |
| Maximum RPM | 7400 |
| Tool Application | Shouldering |
| Tool Performance | General Purpose |
| Usable Length (mm) | 138.400 |
| Number Of Flutes | 2 |
| Number Of Cutter Inserts | 14 |
| Coolant Through | Normal Pressure |
