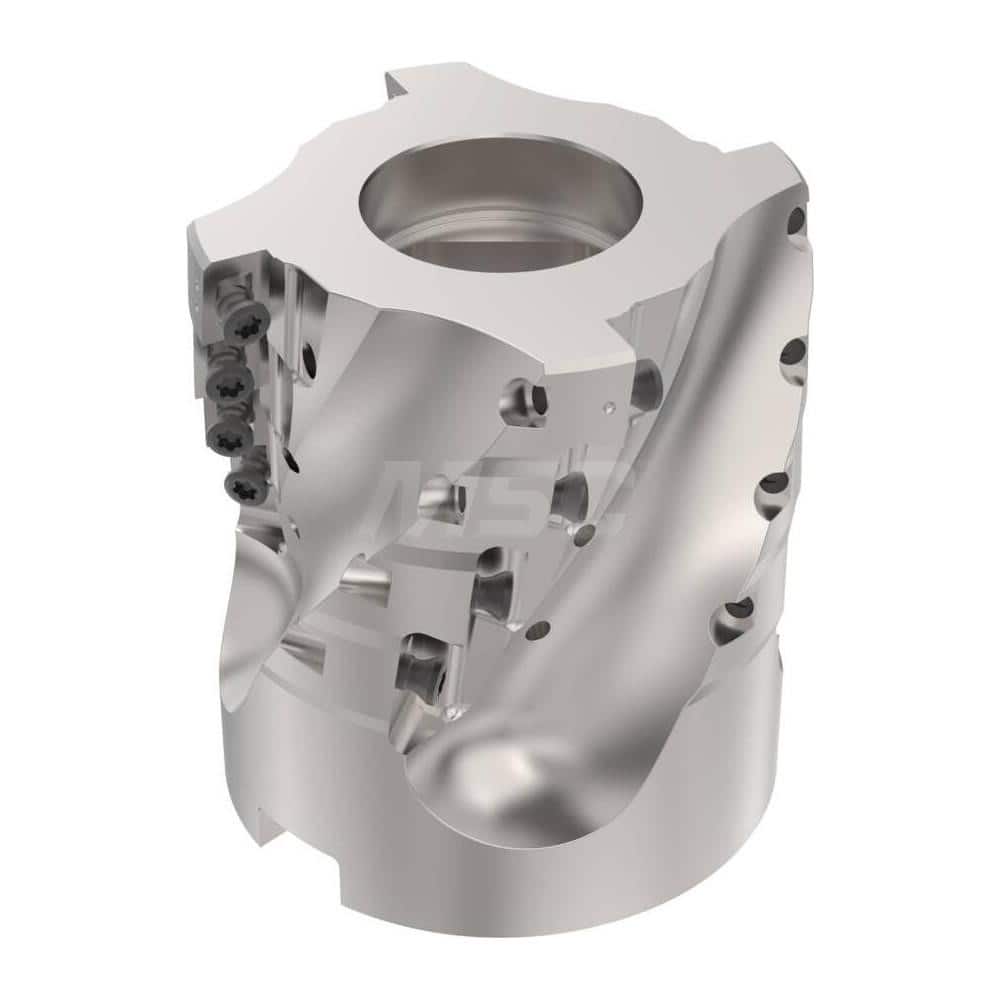

Indexable Square-Shoulder Face Mill: R220.690006304412.4BAN, 27.0000″ Arbor Hole Dia, Uses 16, XOMX1204 & XOEX1204 Inserts, Through Coolant, Series R220.69
Item #: 20656203
Brand: Seco
Model #: 02717767
Product Specifications
| Minimum Cutting Diameter (mm) | 63.00 |
| Maximum Cutting Diameter (mm) | 63.00 |
| Maximum Depth of Cut (mm) | 44.00 |
| Arbor Hole Diameter (mm) | 27.00 |
| Arbor Hole Diameter (Inch) | 27 |
| Arbor Hole Diameter (Decimal Inch) | 27.0000 |
| Compatible Insert Size Code | XOMX1204; XOEX1204 |
| Maximum Ramping Angle | 0.00 |
| Cutter Style | Helical |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 90 |
| Rake | Positive (Axial); Negative (Radial) |
| Rake Angle | 8.0 |
| Series | R220.69 |
| Overall Height (Mm - 5 Decimals) | 70.00 |
| Maximum RPM | 14800 |
| Tool Application | Facing; Shouldering |
| Tool Performance | High Performance |
| Toolholder Material | Steel |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 16 |
| Number Of Flutes | 4 |
