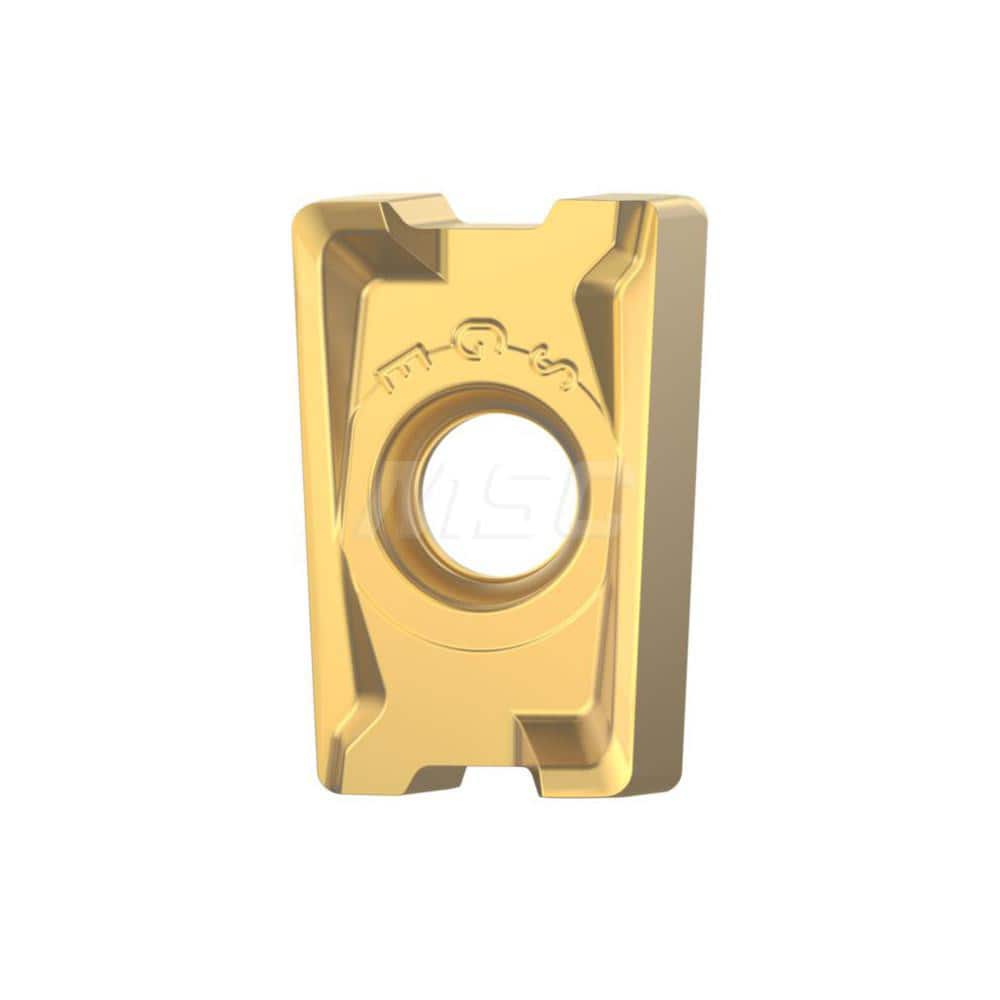

Milling Insert: LNGU15T616SRGE, KCK20B, Solid Carbide N/A Finish, 0.3940″ OAW
Item #: 20733978
Brand: Kennametal
Model #: 6969219
Product Specifications
| Insert Style | LNG |
| Insert Material | Solid Carbide |
| Manufacturer Grade | KCK20B |
| Corner Radius (Decimal Inch) | 0.0630 |
| Insert Hand | Right Hand |
| Series | Mill 4-15 |
| Number Of Cutting Edges | 4 |
| Insert Shape | Rectangle |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Ansi Code | LNGU544SRGE |
| Iso Code | LNGU15T616SRGE |
| Chip Breaker | GE |
| Coating/Finish | Coated |
| Width (Decimal Inch - 4 Decimals) | 0.3940 |
| Width (Mm - 2 Decimals) | 10.00 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2740 |
