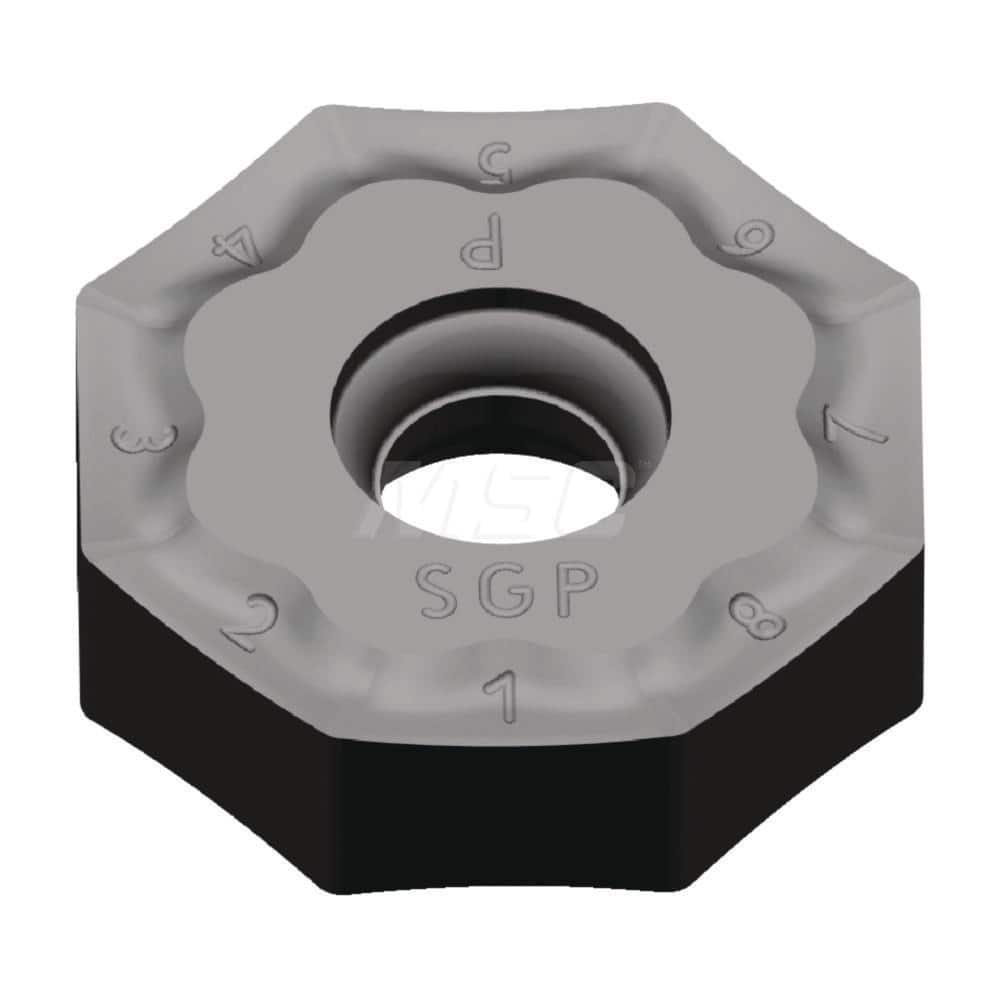

Milling Insert: ONPX080608SNGP, KCK20B, Solid Carbide N/A Finish,
Item #: 20734380
Brand: Kennametal
Model #: 6969263
Product Specifications
| Insert Style | ONPX |
| Insert Material | Solid Carbide |
| Manufacturer Grade | KCK20B |
| Inscribed Circle (Decimal Inch) | 0.7870 |
| Corner Radius (Decimal Inch) | 0.0320 |
| Insert Hand | Neutral |
| Series | Mill 16 |
| Hole Diameter (Decimal Inch) | 0.7870 |
| Number Of Cutting Edges | 16 |
| Insert Shape | Octagon |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Ansi Code | ONPX642SNGP |
| Iso Code | ONPX080608SNGP |
| Chip Breaker | GP |
| Coating/Finish | Coated |
| Thickness (Decimal Inch - 4 Decimals) | 0.2290 |
