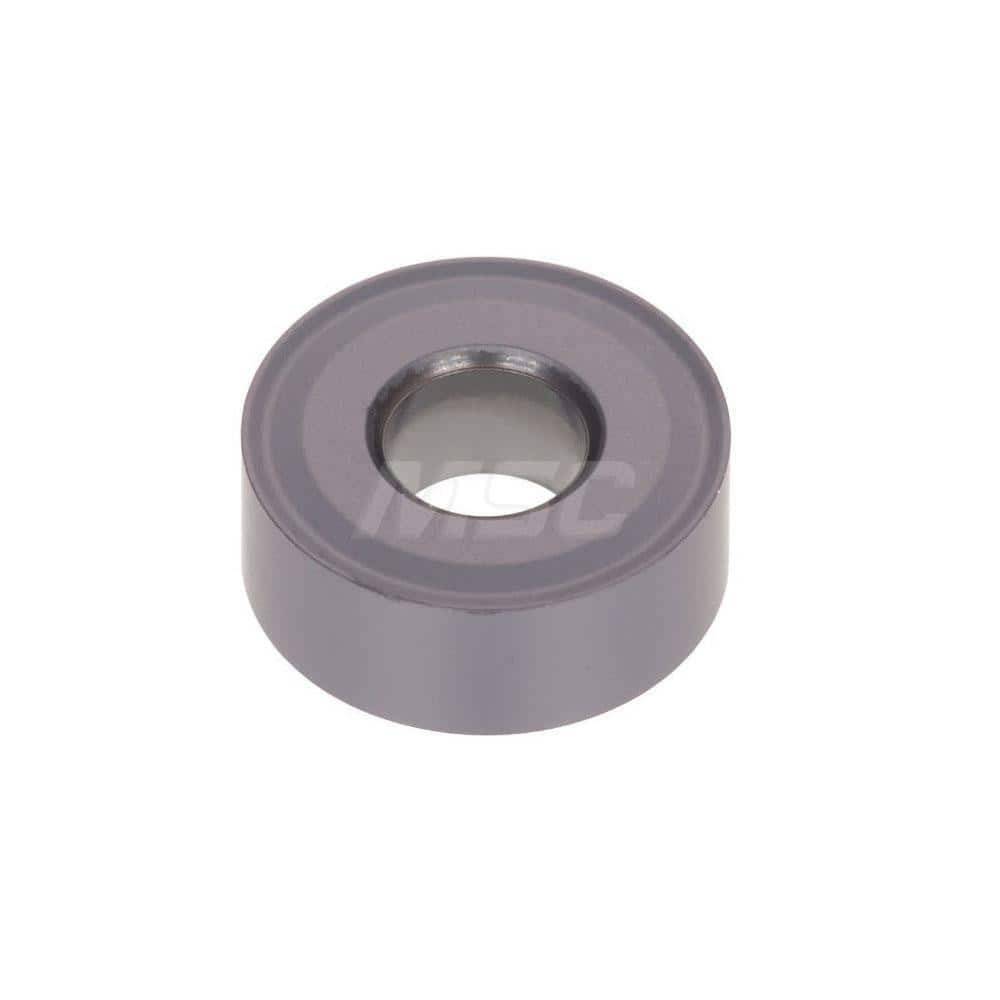

Turning Insert: RNMG86-61 T9225, Solid Carbide TiCN, Al2O3 & TiN Finish, Neutral, 1″ Inscribed Circle, 0.5000″ Corner Radius, 0.0 ° N/A Round, Series RNMG
Item #: 20847844
Brand: Tungaloy
Model #: 6781304
Product Specifications
| Insert Style | RNMG |
| Insert Size Code | 86 |
| Insert Shape | Round |
| Insert Material | Solid Carbide |
| Manufacturer Grade | T9225 |
| Hole Diameter (Decimal Inch) | 0.3630 |
| Maximum Depth of Cut (Decimal Inch) | 0.1181 |
| Inscribed Circle (Inch) | 1 |
| Inscribed Circle (Decimal Inch) | 1.0000 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/8 |
| Insert Thickness (Decimal Inch) | 0.3750 |
| Corner Radius (Inch) | 1/2 |
| Corner Radius (Decimal Inch) | 0.5000 |
| Included Angle | 0.0 |
| Relief Angle | 0 |
| Series | RNMG |
| Coating Process | CVD |
| Rake | Negative |
| Wiper Edge | No |
| Number Of Cutting Edges | 8 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Ansi Code | RNMG8661T9225 |
| Iso Code | RNMG250900-61 T9225 |
| Chip Breaker | 61 |
| Coating/Finish | TiCN; TiN; Al2O3 |
