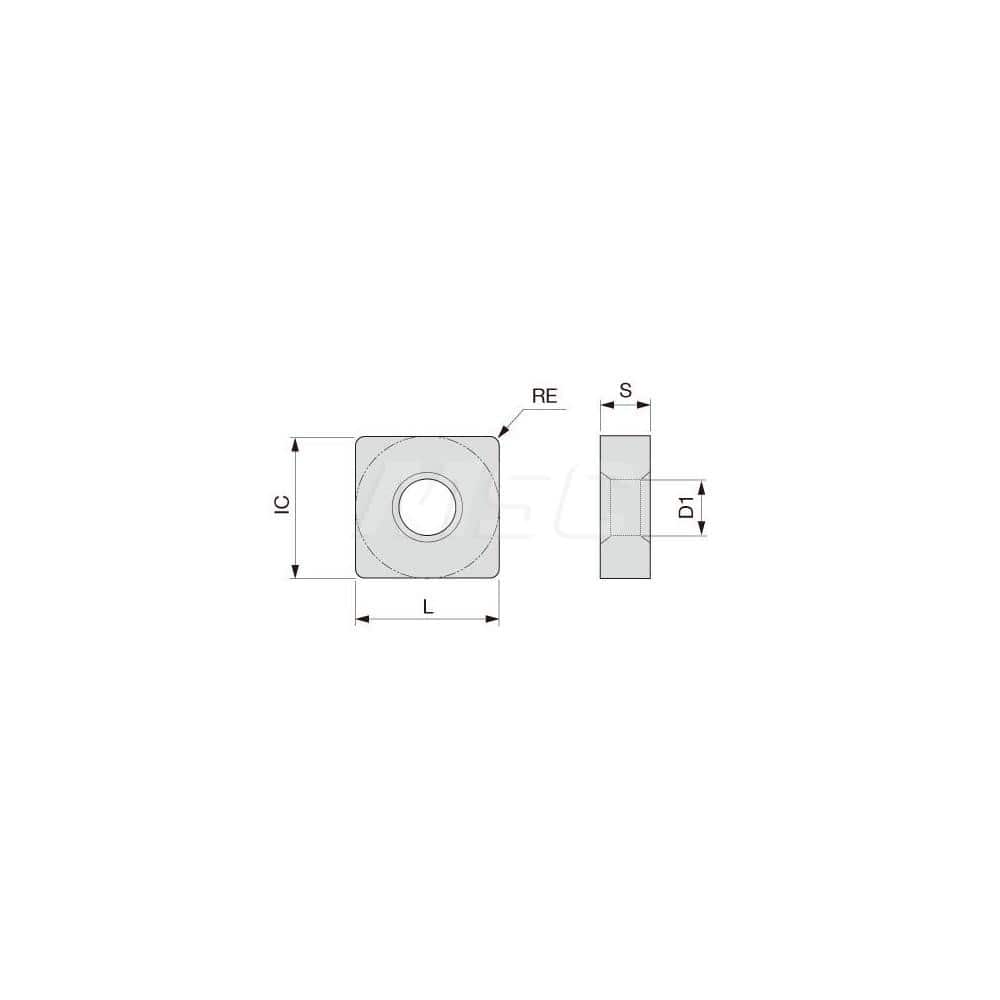

Turning Insert: SNMM1066-65 T9225, Solid Carbide TiCN, Al2O3 & TiN Finish, Neutral, 1-1/4″ Inscribed Circle, 0.0940″ Corner Radius, 90.0 ° N/A Square, Series SNMM
Item #: 20859104
Brand: Tungaloy
Model #: 6780907
Product Specifications
| Insert Style | SNMM |
| Insert Size Code | 1066 |
| Insert Shape | Square |
| Insert Material | Solid Carbide |
| Manufacturer Grade | T9225 |
| Hole Diameter (Decimal Inch) | 0.3460 |
| Inscribed Circle (Inch) | 1-1/4 |
| Inscribed Circle (Decimal Inch) | 1.2500 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/8 |
| Insert Thickness (Decimal Inch) | 0.3750 |
| Corner Radius (Decimal Inch) | 0.0940 |
| Included Angle | 90.0 |
| Relief Angle | 0 |
| Series | SNMM |
| Coating Process | CVD |
| Rake | Negative |
| Wiper Edge | No |
| Number Of Cutting Edges | 8 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Ansi Code | SNMM106665T9225 |
| Iso Code | SNMM 1066-65 T9225 |
| Chip Breaker | 65 |
| Coating/Finish | TiCN; TiN; Al2O3 |
