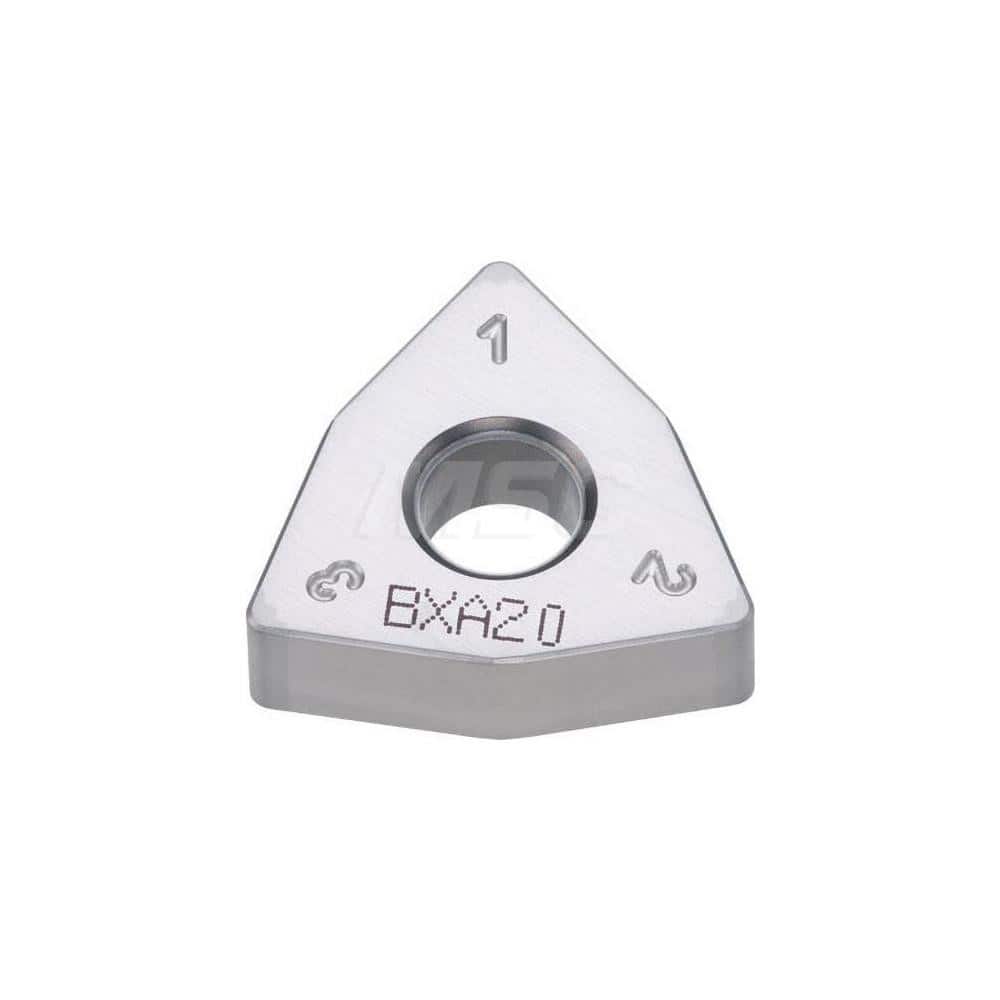

Turning Insert: 6QS-WNGA432-H BXA20, Polycrystalline Cubic Boron Nitride Coated Finish, Neutral, 1/2″ Inscribed Circle, 0.0315″ Corner Radius, 80.0 ° N/A Trigon, Series WNGA
Item #: 20859310
Brand: Tungaloy
Model #: 6776239
Product Specifications
| Insert Style | WNGA |
| Insert Size Code | 432 |
| Insert Shape | Trigon |
| Insert Material | Polycrystalline Cubic Boron Nitride |
| Manufacturer Grade | BXA20 |
| Hole Diameter (Decimal Inch) | 0.2030 |
| Maximum Depth of Cut (Decimal Inch) | 0.0315 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1870 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 80.0 |
| Relief Angle | 0 |
| Series | WNGA |
| Coating Process | PVD |
| Rake | Negative |
| Wiper Edge | No |
| Number Of Cutting Edges | 6 |
| Primary Workpiece Material | Hard Material |
| Primary Workpiece Material Code | H |
| Ansi Code | 6QSWNGA432HBXA20 |
| Iso Code | 6QS-WNGA080408-H BXA20 |
| Chip Breaker | H-Wavy |
| Coating/Finish | Coated |
