Turning Insert: 1QP-EPGW4.51.81 BX470, Polycrystalline Cubic Boron Nitride Uncoated Finish, Neutral, 0.0160″ Corner Radius, 75.0 ° N/A Diamond, Series EPGW
Item #: 20859492
Brand: Tungaloy
Model #: 6706850

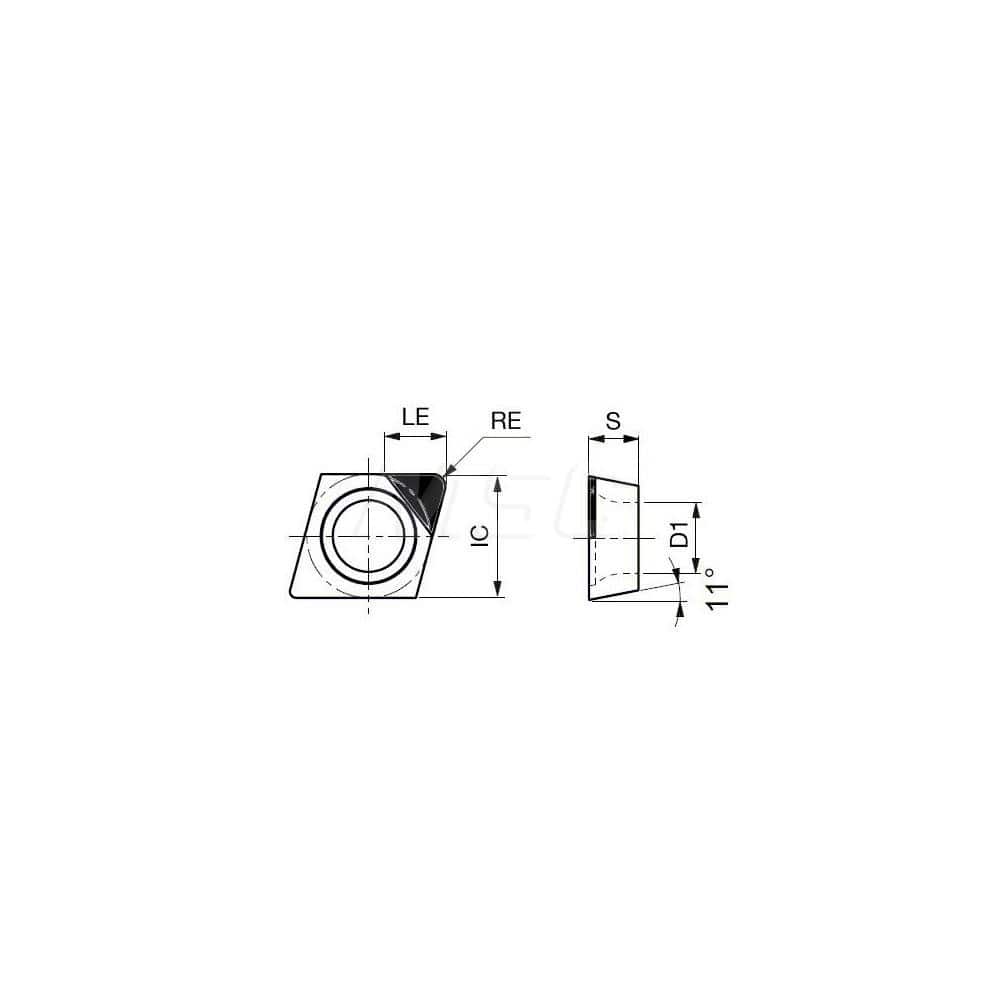

Product Specifications
| Insert Style | EPGW |
| Insert Size Code | 4.51.8 |
| Insert Shape | Diamond |
| Insert Material | Polycrystalline Cubic Boron Nitride |
| Manufacturer Grade | BX470 |
| Hole Diameter (Decimal Inch) | 0.0750 |
| Maximum Depth of Cut (Decimal Inch) | 0.0079 |
| Inscribed Circle (Decimal Inch) | 0.1410 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.0550 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Included Angle | 75.0 |
| Relief Angle | 11 |
| Series | EPGW |
| Coating Process | Uncoated |
| Rake | Positive |
| Wiper Edge | No |
| Number Of Cutting Edges | 1 |
| Primary Workpiece Material | Super-alloys & Titanium |
| Primary Workpiece Material Code | S |
| Ansi Code | 1QPEPGW4.51.81BX470 |
| Iso Code | 1QP-EPGW03X104 BX470 |
| Chip Breaker | FT-CBN |
| Coating/Finish | Uncoated |
