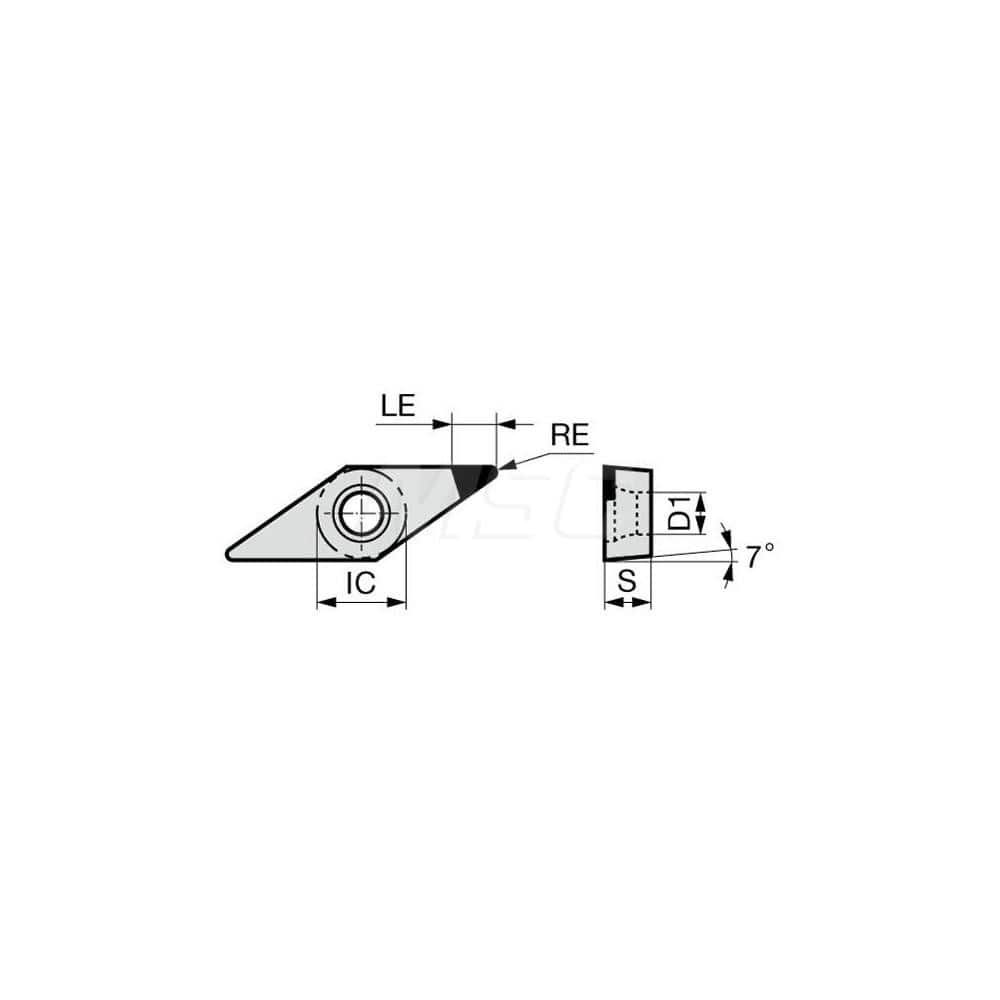

Turning Insert: VCGW330.5DIA DX140, Polycrystalline Diamond Uncoated Finish, Neutral, 3/8″ Inscribed Circle, 0.0080″ Corner Radius, 35.0 ° N/A Diamond, Series VCGW
Item #: 20861647
Brand: Tungaloy
Model #: 6821547
Product Specifications
| Insert Style | VCGW |
| Insert Size Code | 330.5 |
| Insert Shape | Diamond |
| Insert Material | Polycrystalline Diamond |
| Manufacturer Grade | DX140 |
| Hole Diameter (Decimal Inch) | 0.1730 |
| Maximum Depth of Cut (Decimal Inch) | 0.0394 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1870 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Included Angle | 35.0 |
| Relief Angle | 7 |
| Series | VCGW |
| Coating Process | Uncoated |
| Rake | Positive |
| Wiper Edge | No |
| Number Of Cutting Edges | 1 |
| Primary Workpiece Material | Non-Ferrous Metal |
| Ansi Code | VCGW330.5DIADX140 |
| Iso Code | VCGW160402-DIA DX140 |
| Chip Breaker | FT-DIA |
| Coating/Finish | Uncoated |
