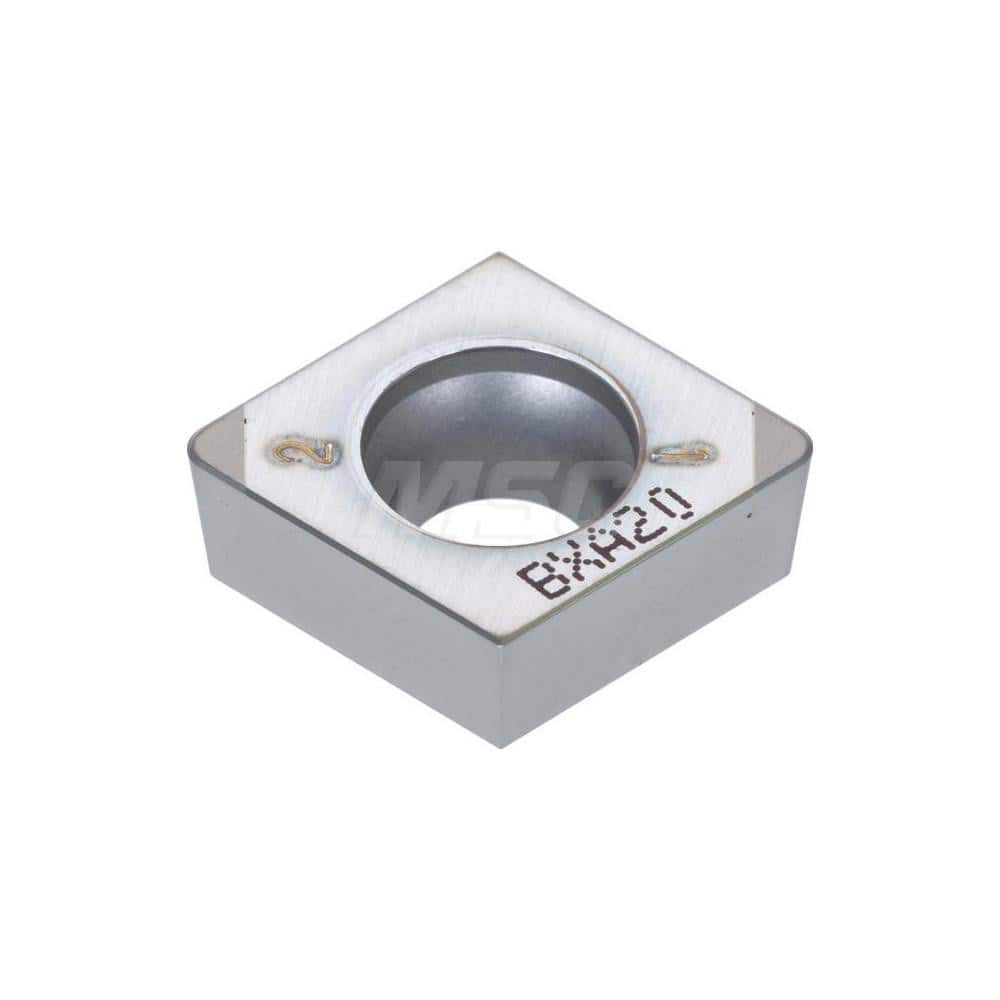

Turning Insert: 2QPCPGW2.51.50.5 BXA20, Polycrystalline Cubic Boron Nitride Coated Finish, Neutral, 0.0080″ Corner Radius, 80.0 ° N/A Diamond, Series CPGW
Item #: 20861795
Brand: Tungaloy
Model #: 6791067
Product Specifications
| Insert Style | CPGW |
| Insert Size Code | 2.51.50.5 |
| Insert Shape | Diamond |
| Insert Material | Polycrystalline Cubic Boron Nitride |
| Manufacturer Grade | BXA20 |
| Hole Diameter (Decimal Inch) | 0.1340 |
| Maximum Depth of Cut (Decimal Inch) | 0.0197 |
| Inscribed Circle (Decimal Inch) | 0.3130 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.0940 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Included Angle | 80.0 |
| Relief Angle | 11 |
| Series | CPGW |
| Coating Process | PVD |
| Rake | Positive |
| Wiper Edge | No |
| Number Of Cutting Edges | 2 |
| Primary Workpiece Material | Hard Material |
| Primary Workpiece Material Code | H |
| Ansi Code | 2QPCPGW2.51.50.5BXA20 |
| Iso Code | 2QP-CPGW080202 BXA20 |
| Chip Breaker | FT-CBN |
| Coating/Finish | Coated |
