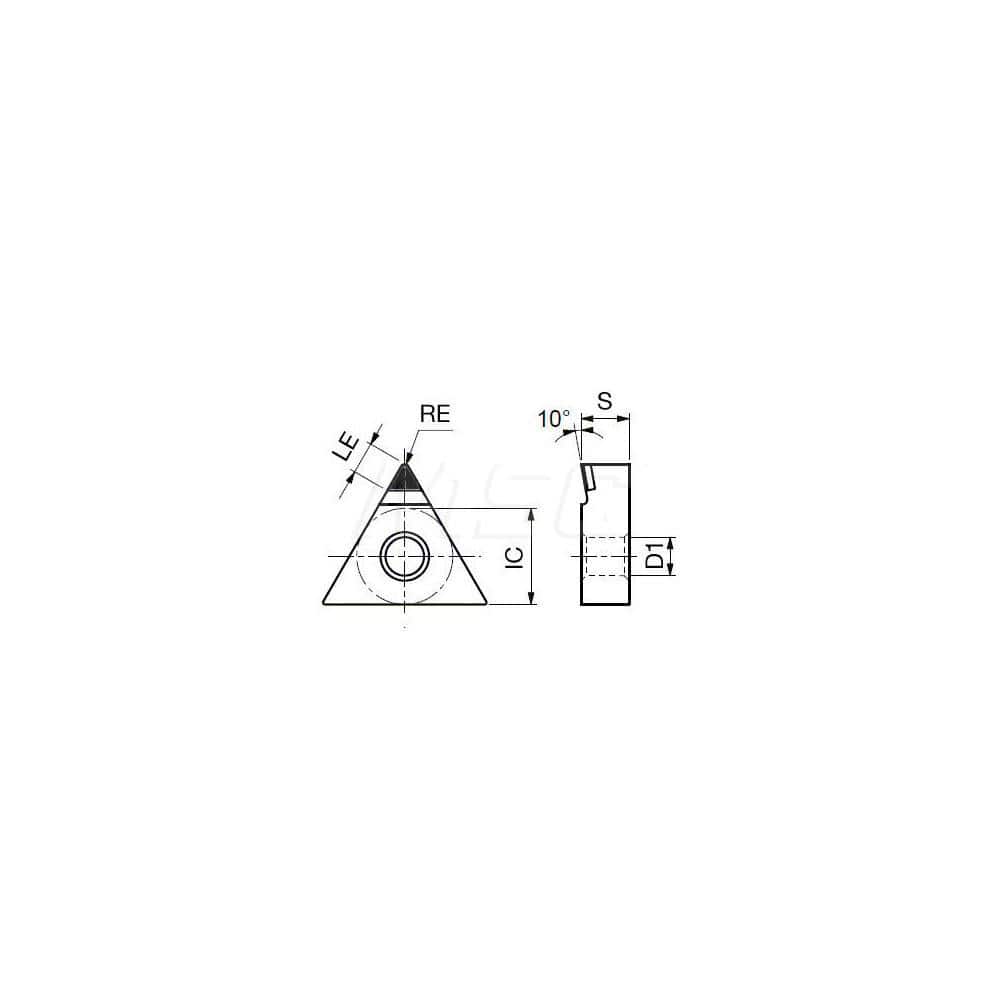

Turning Insert: TNMM331-DIA DX120, Polycrystalline Diamond Uncoated Finish, Neutral, 3/8″ Inscribed Circle, 0.0160″ Corner Radius, 60.0 ° N/A Triangle, Series TNMM
Item #: 20871042
Brand: Tungaloy
Model #: 6822170
Product Specifications
| Insert Style | TNMM |
| Insert Size Code | 331 |
| Insert Shape | Triangle |
| Insert Material | Polycrystalline Diamond |
| Manufacturer Grade | DX120 |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Maximum Depth of Cut (Decimal Inch) | 0.0394 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1870 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Included Angle | 60.0 |
| Relief Angle | 0 |
| Series | TNMM |
| Coating Process | Uncoated |
| Rake | Negative |
| Wiper Edge | No |
| Number Of Cutting Edges | 1 |
| Primary Workpiece Material | Non-Ferrous Metal |
| Ansi Code | TNMM331DIADX120 |
| Iso Code | TNMM160404-DIA DX120 |
| Chip Breaker | BR-DIA |
| Coating/Finish | Uncoated |
