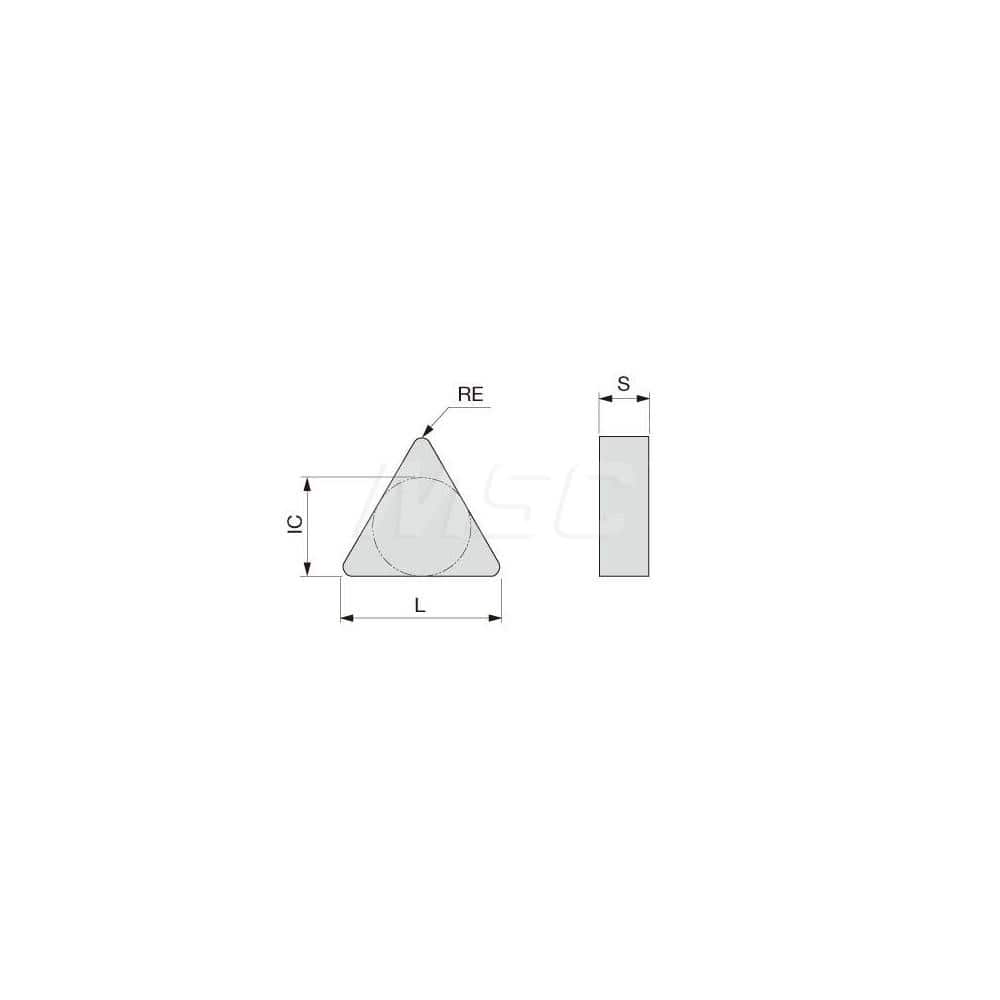

Turning Insert: S-TNGN223 BXC90, Polycrystalline Cubic Boron Nitride TiN Finish, Neutral, 1/4″ Inscribed Circle, 0.0470″ Corner Radius, 60.0 ° N/A Triangle, Series TNGN
Item #: 20874905
Brand: Tungaloy
Model #: 6822075
Product Specifications
| Insert Style | TNGN |
| Insert Size Code | 223 |
| Insert Shape | Triangle |
| Insert Material | Polycrystalline Cubic Boron Nitride |
| Manufacturer Grade | BXC90 |
| Maximum Depth of Cut (Decimal Inch) | 0.1181 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Decimal Inch) | 0.0470 |
| Included Angle | 60.0 |
| Relief Angle | 0 |
| Series | TNGN |
| Coating Process | PVD |
| Rake | Negative |
| Wiper Edge | No |
| Number Of Cutting Edges | 6 |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Ansi Code | STNGN223BXC90 |
| Iso Code | S-TNGN110312 BXC90 |
| Chip Breaker | FT-CBN |
| Coating/Finish | TiN |
