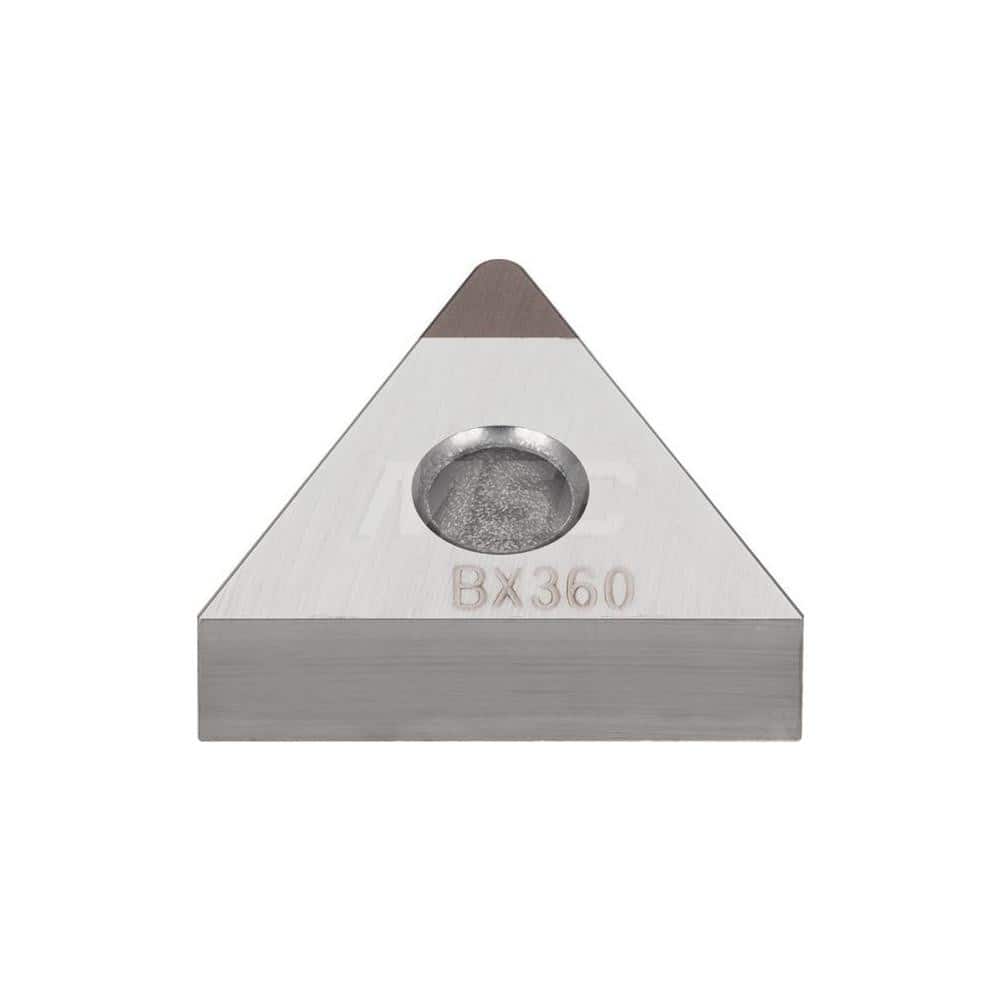

Turning Insert: TNGA330.5-QBN BX360, Polycrystalline Cubic Boron Nitride Uncoated Finish, Neutral, 3/8″ Inscribed Circle, 0.0080″ Corner Radius, 60.0 ° N/A Triangle, Series TNGA
Item #: 20877551
Brand: Tungaloy
Model #: 6808080
Product Specifications
| Insert Style | TNGA |
| Insert Size Code | 330.5 |
| Insert Shape | Triangle |
| Insert Material | Polycrystalline Cubic Boron Nitride |
| Manufacturer Grade | BX360 |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Maximum Depth of Cut (Decimal Inch) | 0.0197 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1870 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Included Angle | 60.0 |
| Relief Angle | 0 |
| Series | TNGA |
| Coating Process | Uncoated |
| Rake | Negative |
| Wiper Edge | No |
| Number Of Cutting Edges | 1 |
| Primary Workpiece Material | Hard Material |
| Primary Workpiece Material Code | H |
| Ansi Code | TNGA330.5QBNBX360 |
| Iso Code | TNGA160402-QBN BX360 |
| Chip Breaker | FT-CBN |
| Coating/Finish | Uncoated |
