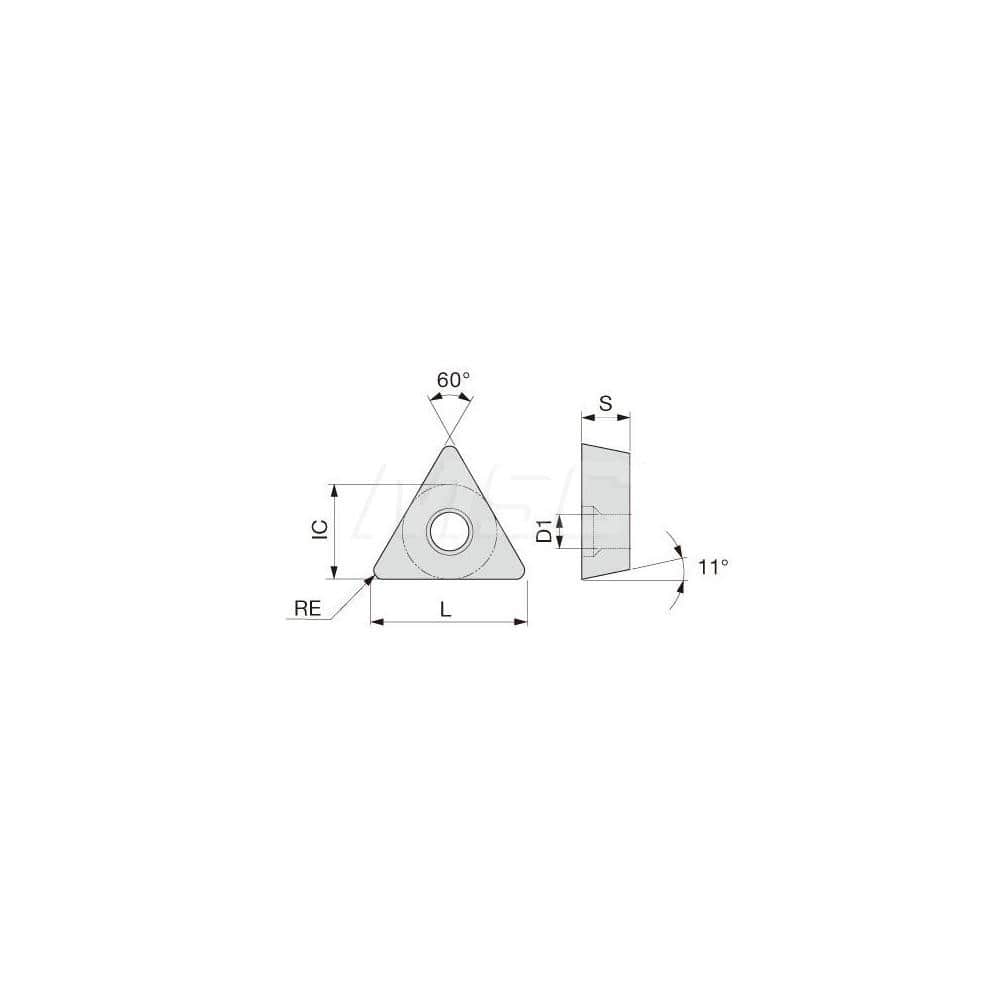

Turning Insert: TPMT730.5PS AH630, Solid Carbide TiAlN Finish, Neutral, 0.0080″ Corner Radius, 60.0 ° N/A Triangle, Series TPMT
Item #: 20884599
Brand: Tungaloy
Model #: 6994782
Product Specifications
| Insert Style | TPMT |
| Insert Size Code | 730.5 |
| Insert Shape | Triangle |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AH630 |
| Hole Diameter (Decimal Inch) | 0.0980 |
| Maximum Depth of Cut (Decimal Inch) | 0.0984 |
| Inscribed Circle (Decimal Inch) | 0.2190 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.0940 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Included Angle | 60.0 |
| Relief Angle | 11 |
| Series | TPMT |
| Coating Process | PVD |
| Rake | Positive |
| Wiper Edge | No |
| Number Of Cutting Edges | 3 |
| Primary Workpiece Material | Stainless Steel |
| Primary Workpiece Material Code | M |
| Ansi Code | TPMT730.5PSAH630 |
| Iso Code | TPMT090202-PS AH630 |
| Chip Breaker | PS |
| Coating/Finish | TiAlN |
