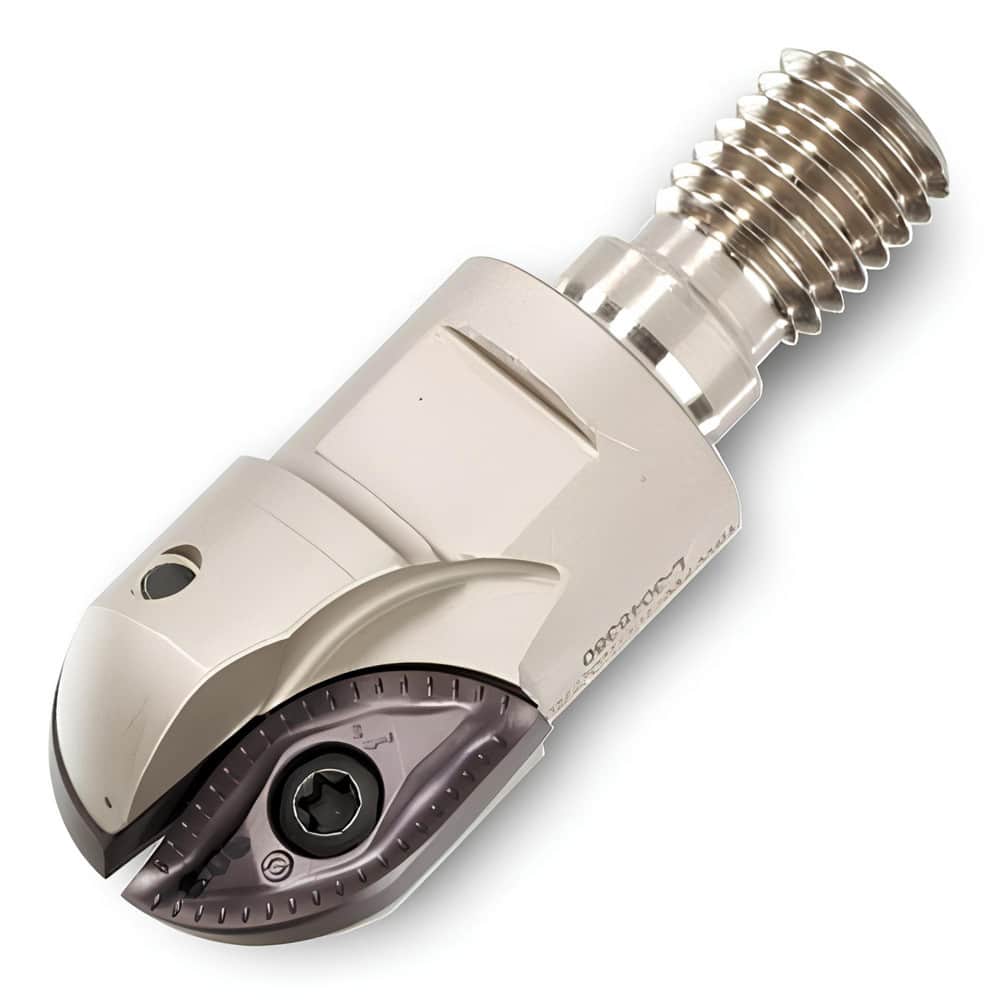

Indexable Ball Nose End Mills; Milling Diameter: 1.5000 in; Maximum Depth Of Cut: 0.7500 in; Shank Diameter: 1.1300 in; Shank Type: Modular; Compatible Insert Style: NDET; Compatible Insert Size Code: 3807; Toolholder Style: 1BW3Z; Series: 1BW7; Overall L
Item #: 20917407
Brand: Ingersoll Cutting Tools
Model #: 2929536
Product Specifications
| Milling Diameter | 1.5000 in |
| Maximum Depth Of Cut | 0.7500 in |
| Shank Diameter | 1.1300 in |
| Shank Type | Modular |
| Compatible Insert Style | NDET |
| Compatible Insert Size Code | 3807 |
| Toolholder Style | 1BW3Z |
| Series | 1BW7 |
| Overall Length (mm) | 1.00 |
| Overall Length (Decimal Inch) | 1.00 |
| Overall Length (Inch) | 1.00 |
| Modular Shank Size | M16 |
| Tool Application | Chamfering; Profile Milling; Milling |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Insert Holding Method | Screw |
| Toolholder Material | Steel |
| Through Coolant | Normal Pressure |
| Tapered Neck | No |
| Number of Flutes | 2 |
| Head Length (Decimal Inch) | 2.7500 in |
