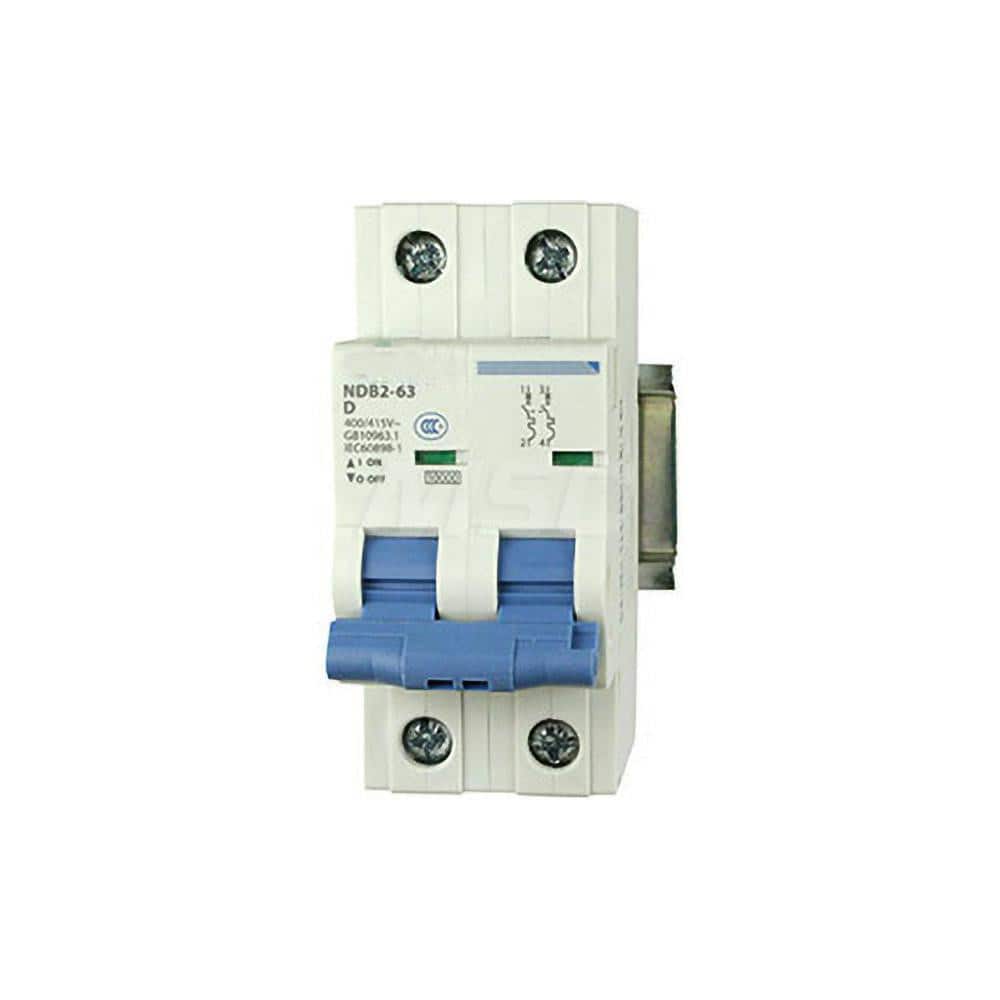

Circuit Breakers; Circuit Breaker Type: C60SP - Supplementary Protection; Milliamperage (mA): 25; 25000; Number of Poles: 2; Breaking Capacity: 10 kA; Tripping Mechanism: Thermal-Magnetic; Terminal Connection Type: Screw; Mounting Type: DIN Rail Mount; Vo
Item #: 20960662
Brand: Nader
Model #: NDB2-63D25-2
Product Specifications
| Circuit Breaker Type | C60SP - Supplementary Protection |
| Milliamperage (mA) | 25; 25000 |
| Number of Poles | 2 |
| Breaking Capacity | 10 kA |
| Tripping Mechanism | Thermal-Magnetic |
| Terminal Connection Type | Screw |
| Mounting Type | DIN Rail Mount |
| Voltage | 480 VAC; 125 VDC |
| Wire Size (sq mm) | 1-35 |
| Wire Size (AWG) | 18-2 |
| Durability | 20000 Cycles |
| Maximum Operating Temperature (F) | 158 |
| Minimum Operating Temperature (F) | -31 |
| Overall Depth (mm) | 82 |
| Overall Depth (Inch) | 3.228 |
| Overall Height (mm) | 75 |
| Overall Height (Inch) | 2.953 |
| Overall Width (Decimal Inch) | 1.417 |
| Overall Width (mm) | 36 |
| Standards Met | UL1077 |
