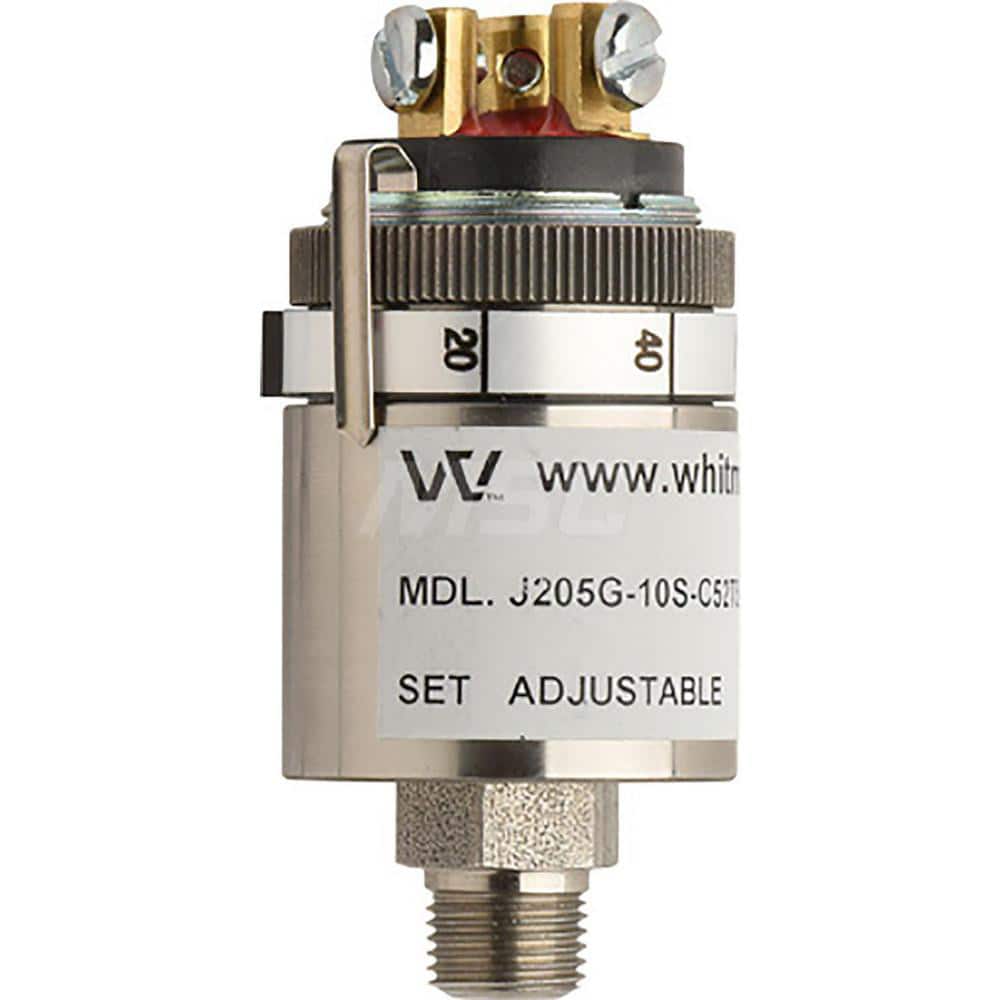

Pressure, Vacuum & Compound Switches; Type: High Pressure Switch with Low Pressure Set Points; Thread Size: 1/8; Voltage: 250VAC / 30VDC; Thread Type: NPT Male; Amperage: 5.0000; Electrical Connection: Screw Terminals; Wetted Parts Material: 316 Stainless
Item #: 20963948
Brand: Whitman Controls
Model #: J205G2SC52TSD
Product Specifications
| Type | High Pressure Switch with Low Pressure Set Points |
| Thread Size | 1/8 |
| Voltage | 250VAC / 30VDC |
| Thread Type | NPT Male |
| Amperage | 5.0000 |
| Electrical Connection | Screw Terminals |
| Wetted Parts Material | 316 Stainless Steel |
| Repeatability | 4 |
| Contact Form | SPDT |
| Maximum Adjustable Pressure On Fall | 16.3 |
| Maximum Adjustable Pressure On Rise | 20 |
| Maximum Setpoint Deadband | 3.70 |
| Maximum Temperature (C) | 225 |
| Maximum Temperature (F) | 225 |
| Minimum Deadband | 0.07 psi |
| Minimum Temperature (C) | -65 |
| Minimum Temperature (F) | -65 |
| Style | Diaphragm Sensor Element |
