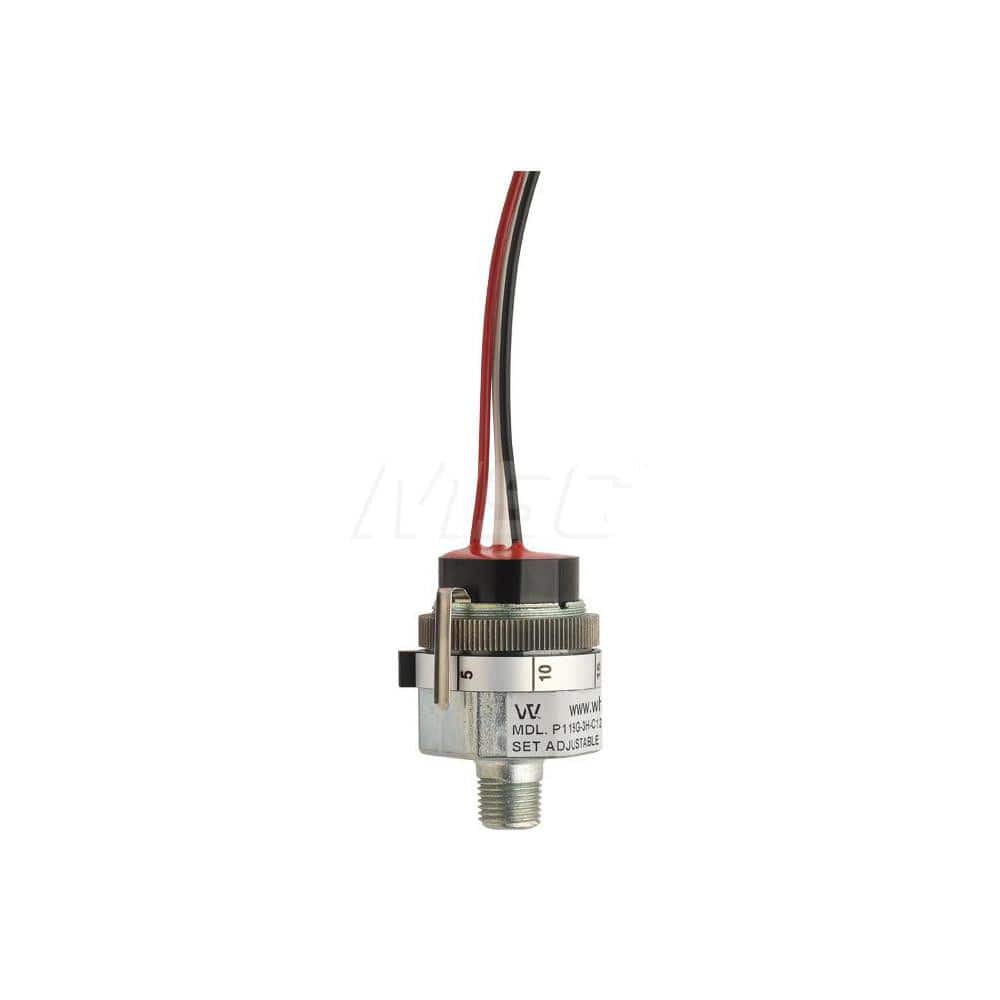

Pressure, Vacuum & Compound Switches; Type: Miniature Pressure Switch; Thread Size: 1/8; Voltage: 115VAC / 28 VDC; Thread Type: NPT Male; Amperage: 1.0000; Electrical Connection: Screw Terminals; Wetted Parts Material: 17-4 PH Zinc Alloy; Repeatability: 2
Item #: 20965273
Brand: Whitman Controls
Model #: P119G25HC12TSD
Product Specifications
| Type | Miniature Pressure Switch |
| Thread Size | 1/8 |
| Voltage | 115VAC / 28 VDC |
| Thread Type | NPT Male |
| Amperage | 1.0000 |
| Electrical Connection | Screw Terminals |
| Wetted Parts Material | 17-4 PH Zinc Alloy |
| Repeatability | 2 |
| Contact Form | SPDT |
| Maximum Adjustable Pressure On Fall | 242.5 |
| Maximum Adjustable Pressure On Rise | 250 |
| Maximum Setpoint Deadband | 9.00 |
| Maximum Temperature (C) | 225 |
| Maximum Temperature (F) | 225 |
| Minimum Deadband | 2.2 |
| Minimum Temperature (C) | -65 |
| Minimum Temperature (F) | -65 |
| Style | Capsule Sensor Element |
