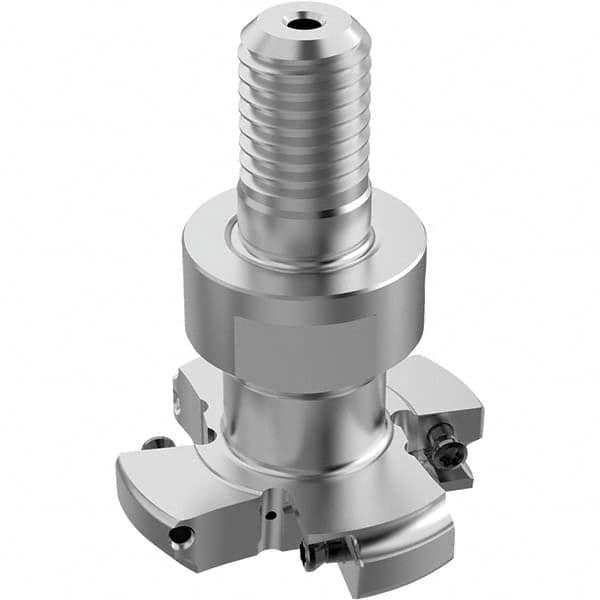

Seco - Combimaster Connection, 3/8" Cutting Width, 0.4134" Depth of Cut, 1-1/2" Cutter Diam, 4 Tooth Indexable Slotting Cutter
Item #: 96583877
Brand: Seco
Model #: 03277903
| Product Specifications | |
|---|---|
| Connection Type | Combimaster |
| Cutting Width (Decimal Inch) | 0.3750 |
| Cutting Width (Inch) | 3/8 |
| Maximum Depth of Cut (Decimal Inch) | 0.4134 |
| Cutter Diameter (Inch) | 1-1/2 |
| Modular Connection Size | M12 |
| Number of Teeth | 4 |
| Toolholder Style | R335.18 |
| Series | R335.18 |
| Insert Style | LNK. 05.. |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 4 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 15400 |
| Rake | Positive |
| Lead Angle | 90 |
