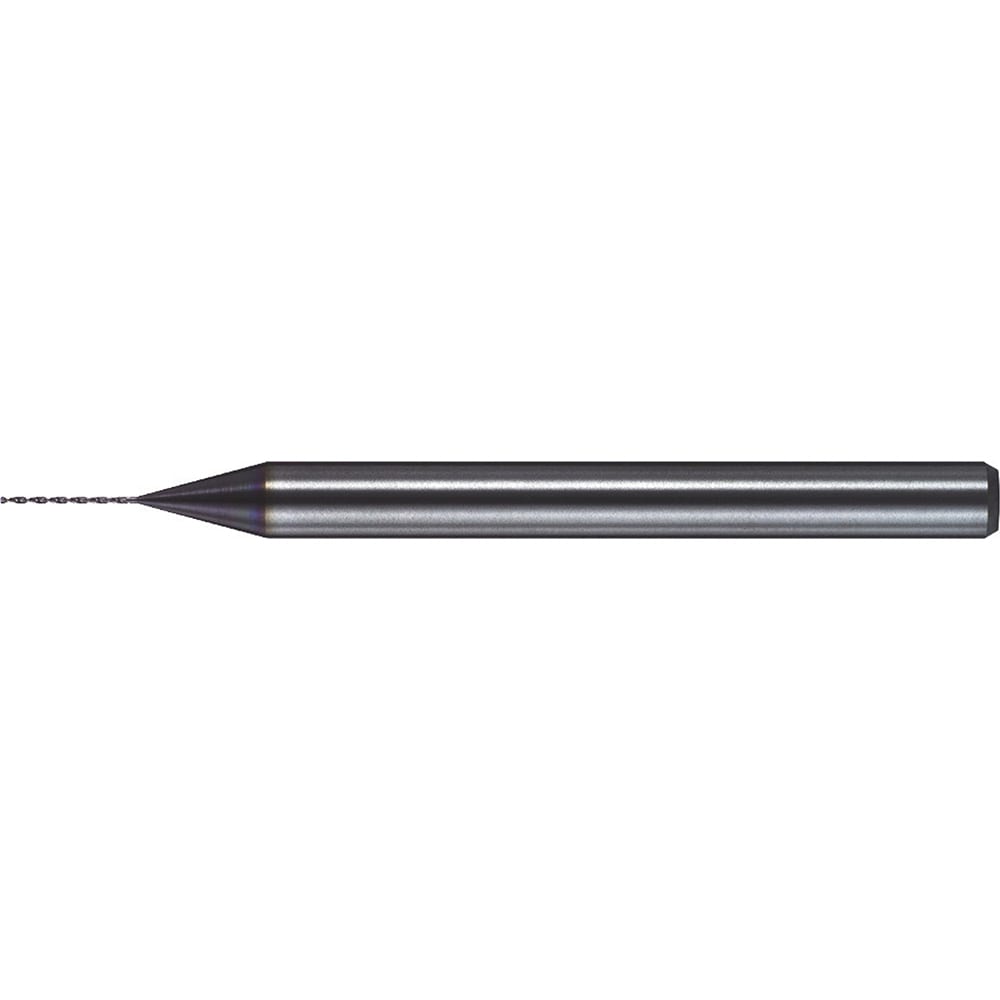

Micro Drill Bit: 0.0055" Dia, 130 deg, Solid Carbide
Item #: 31237795
Brand: Mitsubishi
Model #: 333041
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.0055 |
| Tool Material | Solid Carbide |
| Flute Length (Decimal Inch) | 0.0799 |
| Flute Length (mm) | 2.03 |
| Coating/Finish | TiAlN |
| Coolant Through | No |
| Drill Point Angle | 130 |
| Cutting Direction | Right Hand |
| Maximum Drilling Depth (mm) | 0.45 |
| Maximum Drilling Depth (Decimal Inch) | 0.0177 |
| Number Of Flutes | 2 |
| Series | MSE |
| Overall Length (Decimal Inch) | 1.4972 |
| Overall Length (mm) | 38.03 |
| Flute Type | Spiral |
| Shank Type | Straight-Cylindrical |
| Point Type | X-Thinning |
| Tool Application | Very Small Hole Drilling; Blind Hole |
| Web Thinning | X-Thinned |
| Web Configuration | Parallel |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel; Aluminum; Cast Iron; Brass; Carbon Steel; Titanium; Superalloys & Titanium; Aluminum Alloy; Steel; Copper; Titanium Alloy; Hardened Steel |
| Secondary Workpiece Material Code | P; S; K; M; N |
| Standards | ISO |
| Shank Diameter (Decimal Inch) | 0.1181 |
| Shank Diameter (mm) | 3.00 |
| Shank Length (Decimal Inch) | 1.1130 |
| Shank Length (mm) | 28.27 |
| Flute By Diameter Ratio | 5xD |
| UNSPSC Code | 23241600 |
