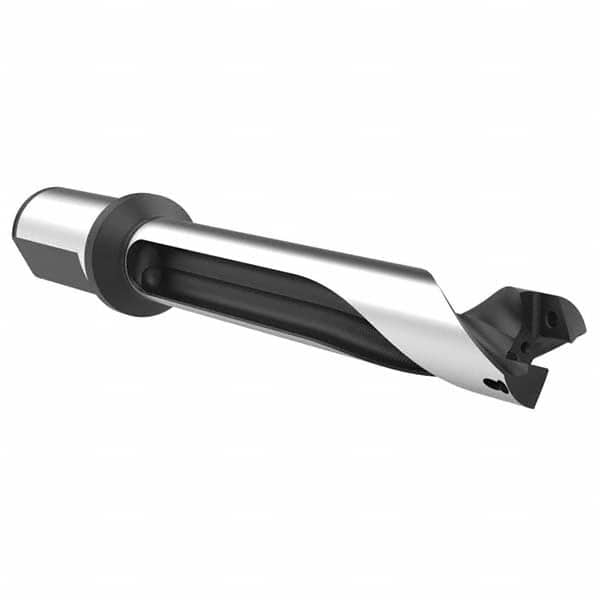

Allied Machine and Engineering - 29mm to 32mm Diam 5xD 159.9mm Max Depth Straight Flute Spade Drill
Item #: 95918009
Brand: Allied Machine and Engineering
Model #: ST05290-32FM
Features and Benefits
Straight flutes are used for horizontal machining center applications.
| Product Specifications | |
|---|---|
| Series | 29 |
| Minimum Drill Diameter (mm) | 29.00 |
| Maximum Drill Diameter (mm) | 32.00 |
| Shank Type | Straight Shank with Flange |
| Shank Diameter (mm) | 32.00 |
| Overall Length (mm) | 260.10 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (mm) | 159.90 |
| Flute Type | Straight Flute |
| Body Length (mm) | 200.10 |
| Shank Length (mm) | 60.00 |
| Series Code/Seat Size | 29 |
| Through Coolant | Yes |
| Toolholder Material | Steel |
| Coolant Hole Thread Type | BSP |
| Shank End Coolant Hole Thread Size (Inch) | 1/4 |
