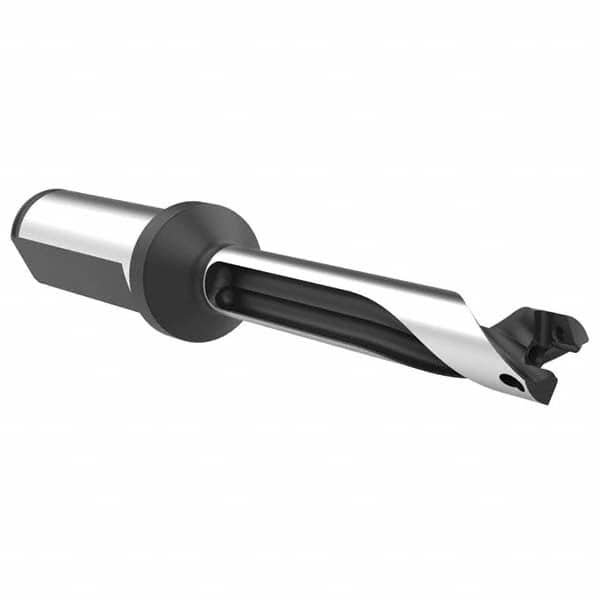

Allied Machine and Engineering - 12mm to 13mm Diam 3xD 39mm Max Depth Straight Flute Spade Drill
Item #: 12329330
Brand: Allied Machine and Engineering
Model #: ST03120-20FM
Features and Benefits
Straight flutes are used for horizontal machining center applications.
| Product Specifications | |
|---|---|
| Series | 12 |
| Minimum Drill Diameter (mm) | 12.00 |
| Maximum Drill Diameter (mm) | 13.00 |
| Shank Type | Straight Shank with Flange |
| Shank Diameter (mm) | 20.00 |
| Overall Length (mm) | 118.80 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (mm) | 39.00 |
| Flute Type | Straight Flute |
| Body Length (mm) | 68.80 |
| Shank Length (mm) | 50.00 |
| Series Code/Seat Size | 12 |
| Through Coolant | Yes |
| Toolholder Material | Steel |
| Coolant Hole Thread Type | NPT |
| Shank End Coolant Hole Thread Size (Inch) | 1/8 |
