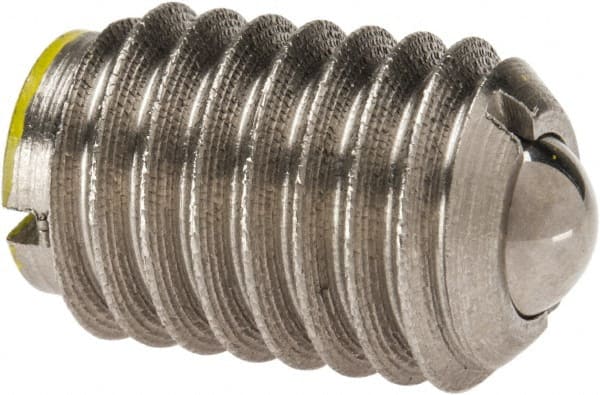

TE-CO - 1/2-13, 0.281" Ball Diam, 3/4" Body Length, 0.072" Max Ball Reach, Threaded Ball Plunger
Item #: 06862346
Brand: TE-CO
Model #: 52919
Features and Benefits
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
Stainless steel balls are ideal for food, medical and industries where resistance from contamination is required. They are also rust and corrosion and resistant.
| Product Specifications | |
|---|---|
| Thread Size | 1/2-13 |
| Body Length (Inch) | 3/4 |
| Body Material | Stainless Steel |
| Ball Material | Stainless Steel |
| Initial End Force (Lb.) | 6.00 |
| Final End Force (Lb.) | 30.00 |
| Locking Element | Yes |
| Ball Diameter (Decimal Inch) | 0.2810 |
| Maximum Ball Reach (Decimal Inch) | 0.0720 |
