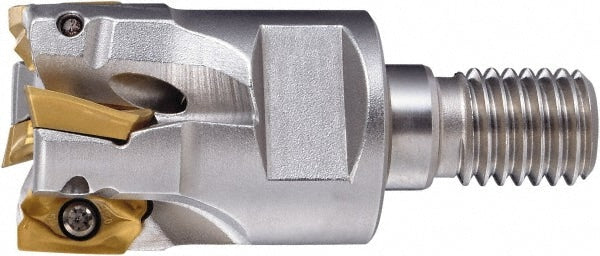

Indexable Square-Shoulder End Mill: PSE11R100ASF12-3, 1" Cut Dia, 1.378" Max Depth of Cut, M12 Modular Connection Shank
Item #: 55702898
Brand: OSG
Model #: 52601002
Product Specifications
| Cutting Diameter | 1.0000 in |
| Cutting Diameter | 1 |
| Overall Length (Decimal Inch) | 1.3780 |
| Maximum Depth of Cut (Decimal Inch) | 1.3780 |
| Cutter Style | PSE |
| Shank Type | Modular Connection |
| Insert Holding Method | Screw |
| Tool Material | High-Speed Steel |
| Series | 52601 |
| Lead Angle | 90 |
| Head Length (Decimal Inch) | 1.378 |
| Modular Connection Size | M12 |
| Insert Compatibility | ZD_T11... |
| UNSPSC Code | 27112803 |
| Number Of Flutes | 3 |
| Number Of Cutter Inserts | 3 |
| Coolant Through | Yes |
| Cutting Diameter | 1.0000 in |
| Cutting Diameter | 1 |
| Overall Length (Decimal Inch) | 1.3780 |
| Maximum Depth of Cut (Decimal Inch) | 1.3780 |
| Cutter Style | PSE |
| Shank Type | Modular Connection |
| Insert Holding Method | Screw |
| Tool Material | High-Speed Steel |
| Series | 52601 |
| Lead Angle | 90 |
| Head Length (Decimal Inch) | 1.378 |
| Modular Connection Size | M12 |
| Insert Compatibility | ZD_T11... |
| UNSPSC Code | 27112803 |
| Number Of Flutes | 3 |
| Number Of Cutter Inserts | 3 |
| Coolant Through | Yes |
| MSC Part # | 55702898 |
| Mfr Part # | 52601002 |
| Country of Origin Country of Origin is subject to change | Luxembourg |
