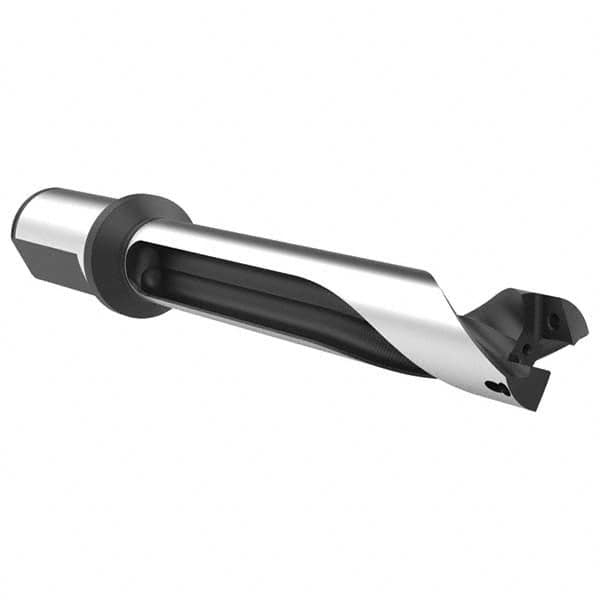

Allied Machine and Engineering - 26mm to 29mm Diam 7xD 202.9mm Max Depth Straight Flute Spade Drill
Item #: 12329694
Brand: Allied Machine and Engineering
Model #: ST07260-32FM
Features and Benefits
Straight flutes are used for horizontal machining center applications.
| Product Specifications | |
|---|---|
| Series | 26 |
| Minimum Drill Diameter (mm) | 26.00 |
| Maximum Drill Diameter (mm) | 29.00 |
| Shank Type | Straight Shank with Flange |
| Shank Diameter (mm) | 32.00 |
| Overall Length (mm) | 304.00 |
| Drill Depth by Diameter Ratio | 7xD |
| Maximum Drill Depth (mm) | 202.90 |
| Flute Type | Straight Flute |
| Body Length (mm) | 244.00 |
| Shank Length (mm) | 60.00 |
| Series Code/Seat Size | 26 |
| Through Coolant | Yes |
| Toolholder Material | Steel |
| Coolant Hole Thread Type | BSP |
| Shank End Coolant Hole Thread Size (Inch) | 1/4 |
