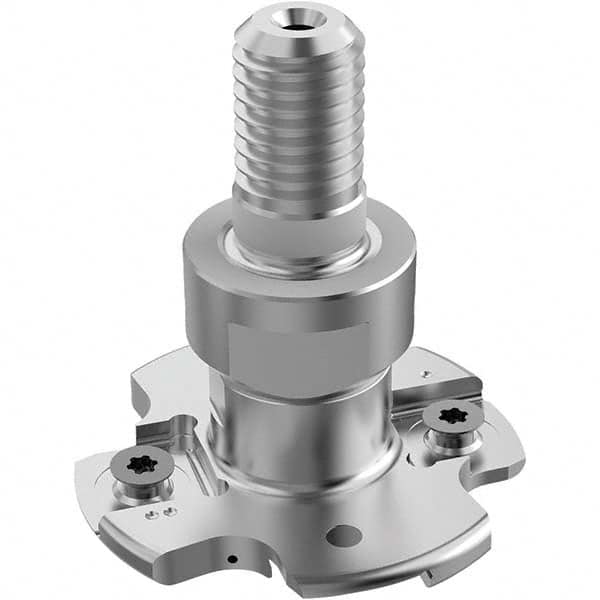

Seco - Combimaster Connection, 5mm Cutting Width, 11.6mm Depth of Cut, 40mm Cutter Diam, 4 Tooth Indexable Slotting Cutter
Item #: 96584107
Brand: Seco
Model #: 03277858
| Product Specifications | |
|---|---|
| Connection Type | Combimaster |
| Cutting Width (mm) | 5.00 |
| Cutting Width (Decimal Inch) | 0.1969 |
| Maximum Depth of Cut (mm) | 11.60 |
| Cutter Diameter (mm) | 40.00 |
| Modular Connection Size | M10 |
| Number of Teeth | 4 |
| Toolholder Style | R335.19 |
| Series | R335.19 |
| Insert Style | SNHQ 1103 |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 4 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 18700 |
| Rake | Positive |
| Lead Angle | 90 |
