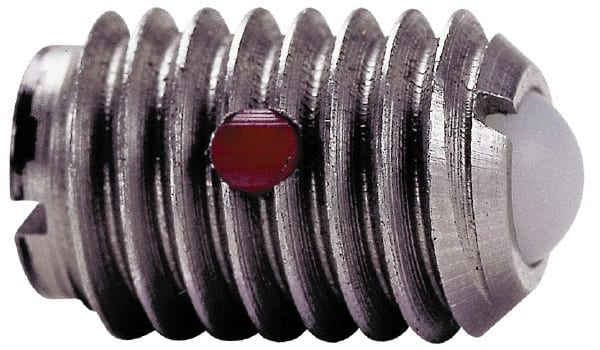

TE-CO - 8-36, 0.093" Ball Diam, 11/32" Body Length, 0.025" Max Ball Reach, Threaded Ball Plunger
Item #: 84904192
Brand: TE-CO
Model #: 53833
Features and Benefits
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
Nylon balls are ideal for applications where products or components are made mostly or entirely of plastic. They are lightweight, highly durable and non-marring.
| Product Specifications | |
|---|---|
| Thread Size | 8-36 |
| Body Length (Inch) | 11/32 |
| Body Material | Stainless Steel |
| Ball Material | Nylon |
| Initial End Force (Lb.) | 0.50 |
| Final End Force (Lb.) | 1.25 |
| Locking Element | Yes |
| Ball Diameter (Decimal Inch) | 0.0930 |
| Maximum Ball Reach (Decimal Inch) | 0.0250 |
