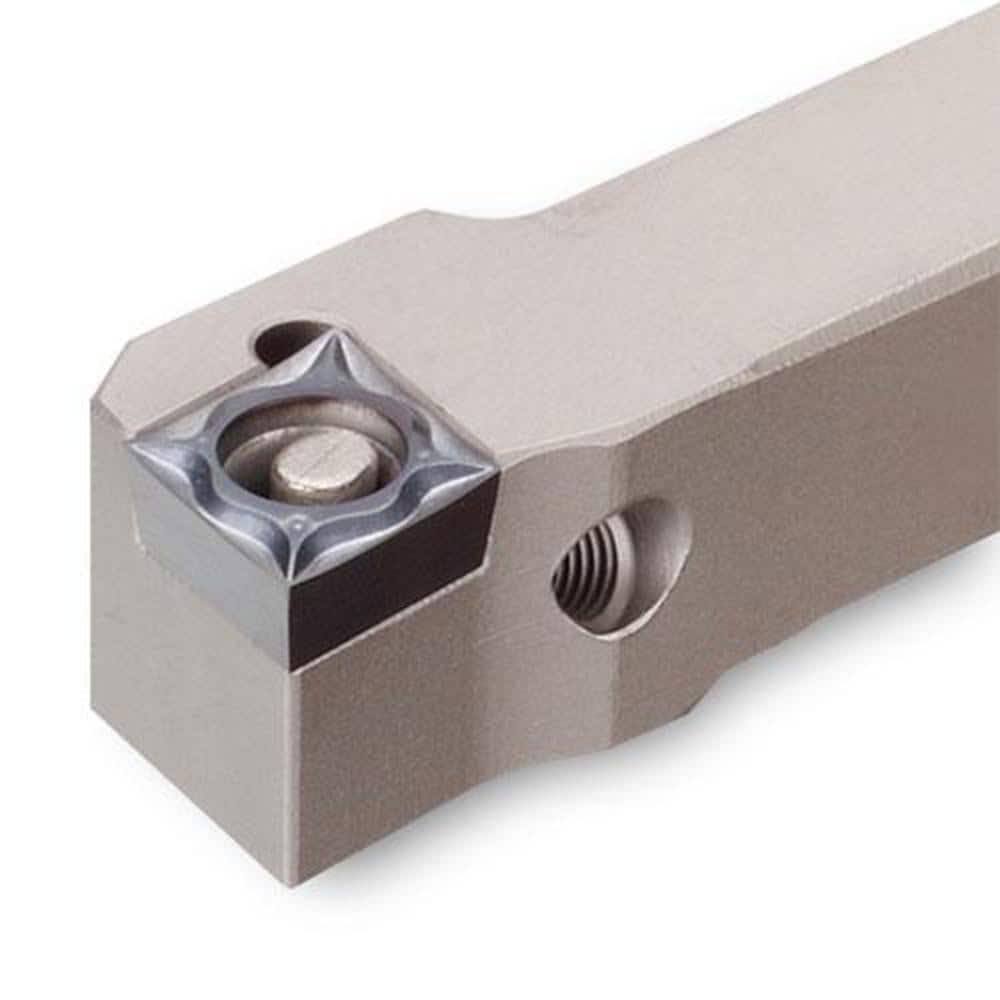

Indexable Turning Toolholders; Cutting Direction: Right Hand; Compatible Insert Size Code: CC..32.5.; Toolholder Style: BCLCR; Rake: Positive; Rake Angle: 7.000; Multi-use Tool: No; Lead Angle: 95.0; Insert Holding Method: Lever; Shank Width (Decimal Inch
Item #: 23046808
Brand: Ingersoll Cutting Tools
Model #: 3606602
Product Specifications
| Cutting Direction | Right Hand |
| Compatible Insert Size Code | CC..32.5. |
| Toolholder Style | BCLCR |
| Rake | Positive |
| Rake Angle | 7.000 |
| Multi-use Tool | No |
| Lead Angle | 95.0 |
| Insert Holding Method | Lever |
| Shank Width (Decimal Inch) | 0.5000 |
| Shank Width (Inch) | 1/2 |
| Shank Height (Decimal Inch) | 0.5000 |
| Shank Height (Inch) | 1/2 |
| Series | L-SH; BCLCR |
| Overall Length (mm) | 5.00 |
| Overall Length (Decimal Inch) | 5.0000 |
| Overall Length (Inch) | 5 |
| Cutting Tool Application | Turning |
| Head Length (Decimal Inch) | 0.6700 |
| Toolholder Material | Steel |
