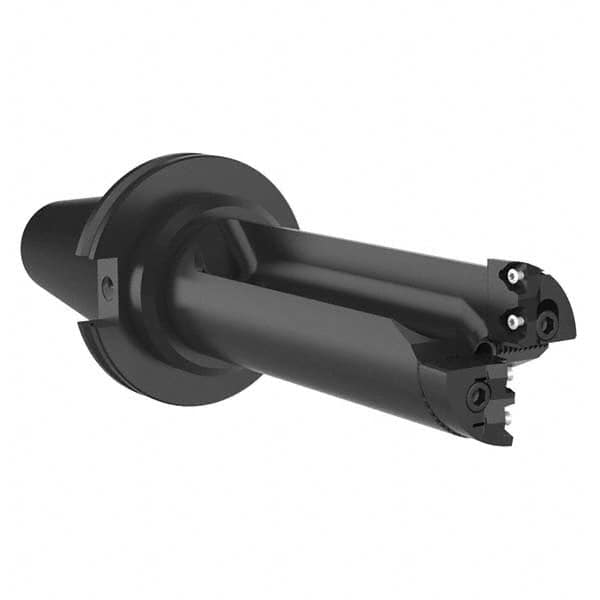

Allied Machine and Engineering - 5-3/8" Max Drill Depth, 2.2xD, 55.9mm Diam, Indexable Insert Drill
Item #: 61274148
Brand: Allied Machine and Engineering
Model #: SP38X22-CV50
| Product Specifications | |
|---|---|
| Drill Style | SP38 |
| Drill Diameter (mm) | 55.90 |
| Drill Diameter (Decimal Inch) | 2.2000 |
| Maximum Drill Depth (Inch) | 5-3/8 |
| Shank Type | Taper Shank |
| Taper Size | CAT50 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2.2xD |
| Number of Drill Inserts | 4 |
| Maximum Drill Diameter (Decimal Inch) | 2.4000 |
| Maximum Drill Diameter (mm) | 61.00 |
| Overall Length/Projection (Inch) | 7-43/64 |
| Insert Compatibility | OP-05T308 |
| Series | Revolution Drill |
