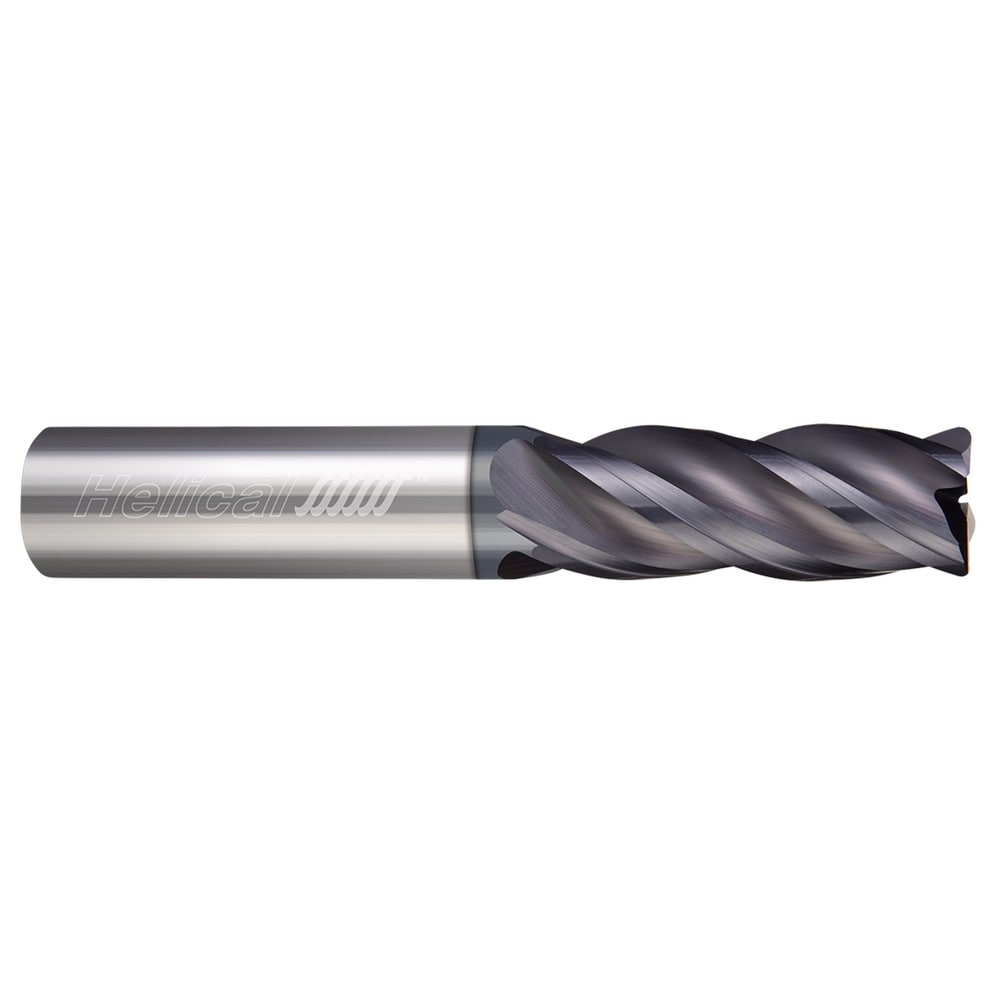

Brand: Helical Solutions / Part #: 59474
Item #: 98501059
Brand: Helical Solutions
Model #: 59474
Product Specifications
| Mill Diameter (mm) | 20.00 |
| Corner Radius (mm) | 0.50 |
| Coating/Finish | Aplus |
| End Mill Material | Solid Carbide |
| Number Of Flutes | 4 |
| Single Or Double End | Single |
| Overall Length (mm) | 89.0000 |
| Length of Cut (mm) | 30.0000 |
| Cutting Direction | Right Hand |
| Mill Diameter (Decimal Inch) | 0.7874 |
| Flute Direction | Right Hand |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.1811 |
| Extended Reach | No |
| Shank Type | Round |
| Centercutting | Yes |
| Variable Index | Yes |
| Variable Helix | No |
| Shank Diameter (mm) | 20.0000 |
| Series | End Mills for Steels - 4 Flute - Corner Radius - Metric - Variable Pitch |
