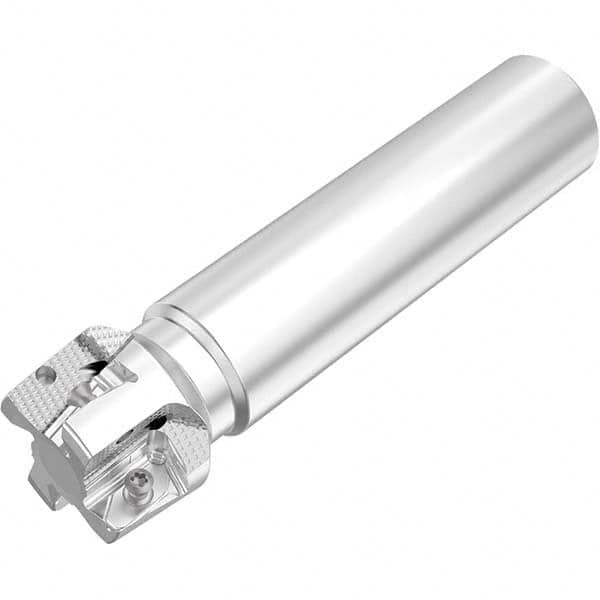

Seco - Indexable Square-Shoulder End Mills Cutting Diameter (mm): 40.00 Cutting Diameter (Decimal Inch): 1.5749
Item #: 18992735
Brand: Seco
Model #: 03290229
Product Specifications
Indexable Square-Shoulder End Mills; Cutting Diameter (mm): 40.00 ; Cutting Diameter (Decimal Inch): 1.5749 ; Shank Type: Straight ; Shank Diameter (mm): 32.00 ; Overall Length/Projection (mm): 150.00 ; Lead Angle: 90
| Cutting Diameter (mm) | 40.00 |
| Cutting Diameter (Decimal Inch) | 1.5749 |
| Shank Type | Straight |
| Shank Diameter (mm) | 32.00 |
| Overall Length/Projection (mm) | 150.00 |
| Lead Angle | 90 |
| Series | R217.64 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 15.00 |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| End Mill Type | Indexable Square Shoulder End Mill |
| Cutter Style | R217.64 |
| Number of Flutes | 4 |
| Minimum Cutting Diameter (mm) | 40.00 |
| Weldon Flat | No |
| Insert Compatibility | ZOMX16 |
| Shank Length (mm) | 113.00 |
| Maximum RPM | 11400 |
| Toolholder Material | Steel |
