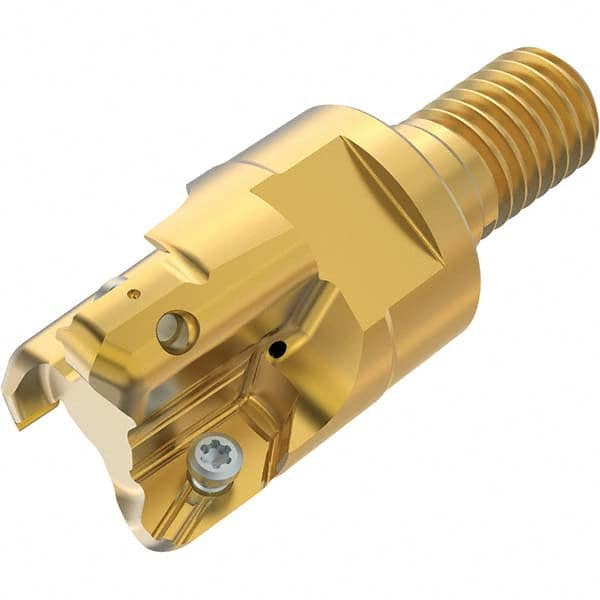

Seco - Indexable Copy End Mills Cutting Diameter (mm): 20 Cutting Diameter (Decimal Inch): 0.7875
Item #: 18989624
Brand: Seco
Model #: 03308725
Product Specifications
Indexable Copy End Mills; Cutting Diameter (mm): 20 ; Cutting Diameter (Decimal Inch): 0.7875 ; Maximum Depth of Cut (mm): 20.00 ; Shank Type: Combimaster ; Modular Connection Thread Size: M10 ; Number of Cutter Inserts: 3
| Cutting Diameter (mm) | 20 |
| Cutting Diameter (Decimal Inch) | 0.7875 |
| Maximum Depth of Cut (mm) | 20.00 |
| Shank Type | Combimaster |
| Modular Connection Thread Size | M10 |
| Number of Cutter Inserts | 3 |
| Insert Style | XPKX08 |
| Toolholder Style | R217.97 |
| Series | R217.97 |
| Overall Length (mm) | 120.00 |
| Insert Diameter (mm) | 8.00 |
| Insert Holding Method | Screw |
| Toolholder Material | Steel |
| Through Coolant | Through Coolant |
| Weldon Flat | No |
| Number of Flutes | 3 |
| Minimum Cutting Diameter (mm) | 20.00 |
| Head Length (mm) | 28.00 |
| Shank Length (mm) | 79.00 |
| Maximum RPM | 40000 |
