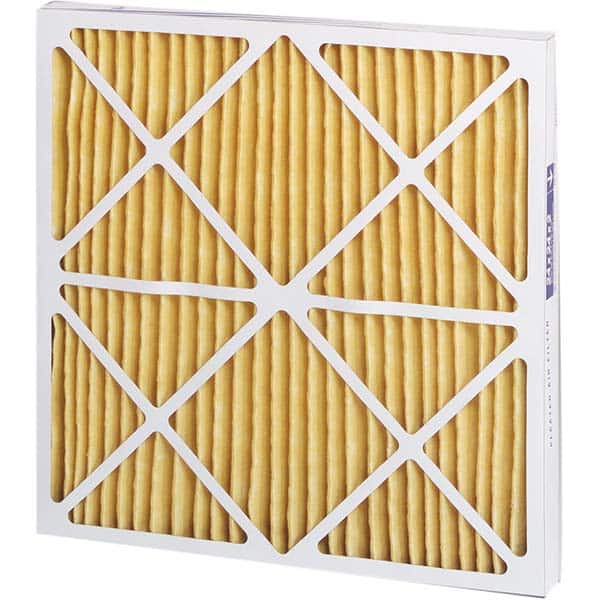

PRO-SOURCE - Pleated & Panel Air Filters Filter Type: Wire-Backed Pleated Nominal Height (Inch): 15
Item #: 14274443
Brand: PRO-SOURCE
Model #:
Product Specifications
Pleated & Panel Air Filters; Filter Type: Wire-Backed Pleated ; Nominal Height (Inch): 15 ; Nominal Width (Inch): 30 ; Nominal Depth (Inch): 1 ; MERV Rating: 11 ; Media Material: Synthetic
| Filter Type | Wire-Backed Pleated |
| Nominal Height (Inch) | 15 |
| Nominal Width (Inch) | 30 |
| Nominal Depth (Inch) | 1 |
| MERV Rating | 11 |
| Media Material | Synthetic |
| Integrated Frame | Yes |
| Actual Height (Decimal Inch) | 14.500 |
| Actual Width (Decimal Inch) | 29.500 |
| Actual Depth (Inch) | 0.875 |
| Maximum Air Flow (FPM) | 500 |
| CFM | 1172 |
| Initial Resistance at FPM (Inches w.g.) | 0.20 (at 300 FPM); 0.28 (at 375 FPM) |
| Final Resistance at FPM (Inches w.g.) | 1 |
| Maximum Temperature (F) | 150.000 |
| Capacity | High |
| Pleats Per Square Foot | 15 |
| Frame Material | Beverage Board |
| For Use With | Any Unit |
| Standards Met | UL 900 |
