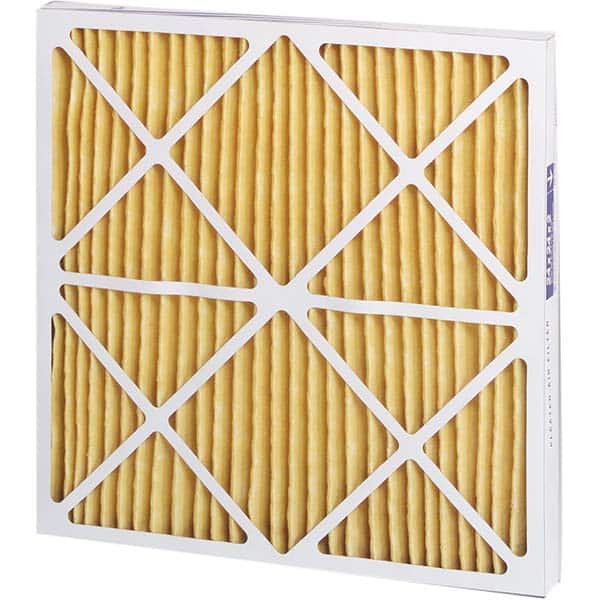

PRO-SOURCE - Pleated & Panel Air Filters Filter Type: Wire-Backed Pleated Nominal Height (Inch): 20
Item #: 14271712
Brand: PRO-SOURCE
Model #:
Product Specifications
Pleated & Panel Air Filters; Filter Type: Wire-Backed Pleated ; Nominal Height (Inch): 20 ; Nominal Width (Inch): 30 ; Nominal Depth (Inch): 2 ; MERV Rating: 11 ; Media Material: Synthetic
| Filter Type | Wire-Backed Pleated |
| Nominal Height (Inch) | 20 |
| Nominal Width (Inch) | 30 |
| Nominal Depth (Inch) | 2 |
| MERV Rating | 11 |
| Media Material | Synthetic |
| Integrated Frame | Yes |
| Actual Height (Decimal Inch) | 19.500 |
| Actual Width (Decimal Inch) | 29.500 |
| Actual Depth (Inch) | 1.75 |
| Maximum Air Flow (FPM) | 500 |
| CFM | 2083 |
| Initial Resistance at FPM (Inches w.g.) | 0.19 (at 375 FPM); 0.28 (at 500 FPM); 0.38 (at 625 FPM) |
| Final Resistance at FPM (Inches w.g.) | 1 |
| Maximum Temperature (F) | 150.000 |
| Capacity | High |
| Pleats Per Square Foot | 15 |
| Frame Material | Beverage Board |
| For Use With | Any Unit |
| Standards Met | UL 900 |
