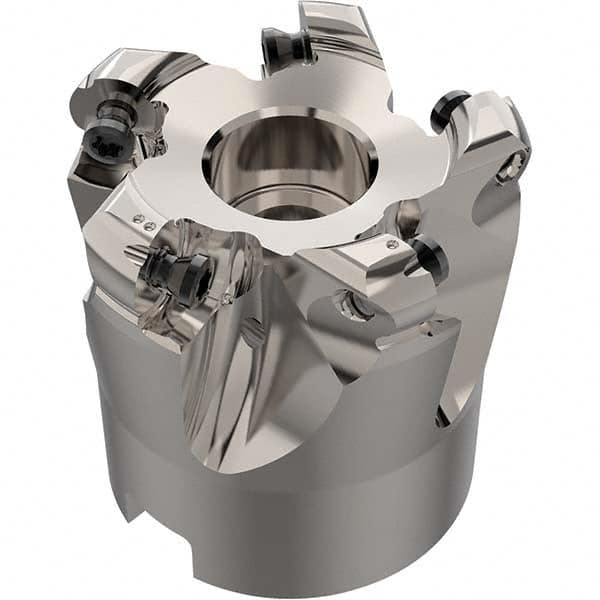

Seco - Indexable Copy Face Mills Cutting Diameter (mm): 30.00 Cutting Diameter (Decimal Inch): 1.1811
Item #: 94872991
Brand: Seco
Model #: 03278803
Product Specifications
Indexable Copy Face Mills; Cutting Diameter (mm): 30.00 ; Cutting Diameter (Decimal Inch): 1.1811 ; Maximum Depth of Cut (mm): 5.00 ; Arbor Hole Diameter (mm): 16.00 ; Overall Height (mm): 40.00 ; Series: R220.29
| Cutting Diameter (mm) | 30.00 |
| Cutting Diameter (Decimal Inch) | 1.1811 |
| Maximum Depth of Cut (mm) | 5.00 |
| Arbor Hole Diameter (mm) | 16.00 |
| Overall Height (mm) | 40.00 |
| Series | R220.29 |
| Number of Cutter Inserts | 5 |
| Insert Compatibility | RP..10.. |
| Cutter Style | R220.29 |
| Through Coolant | Yes |
| Maximum RPM | 19300 |
| Insert Holding Method | Screw |
| Hub Diameter (mm) | 33.00 |
| Insert Inscribed Circle (mm) | 10.00 |
| Keyway Width (mm) | 8.4000 |
| Cutting Direction | Right Hand |
| Overall Diameter (mm) | 40.0000 |
